Concentric Cable, Coaxial Cable

Concentric Cable meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Cable Specification:

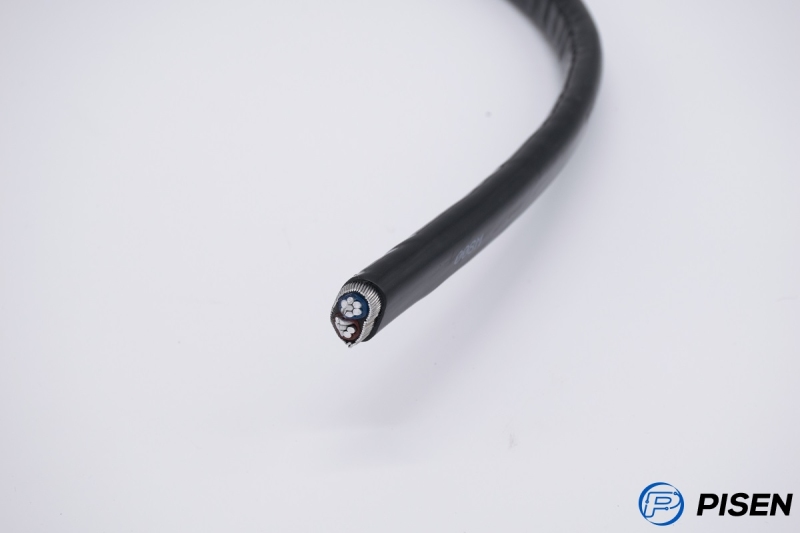

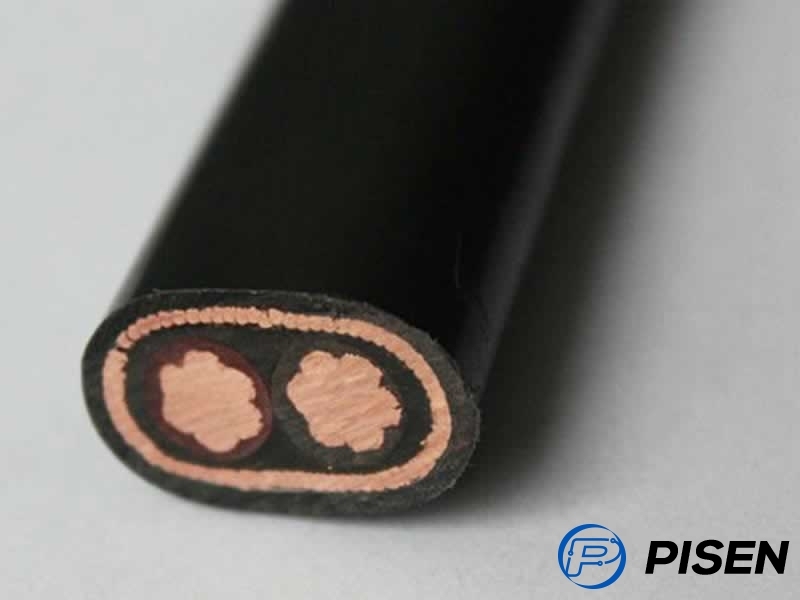

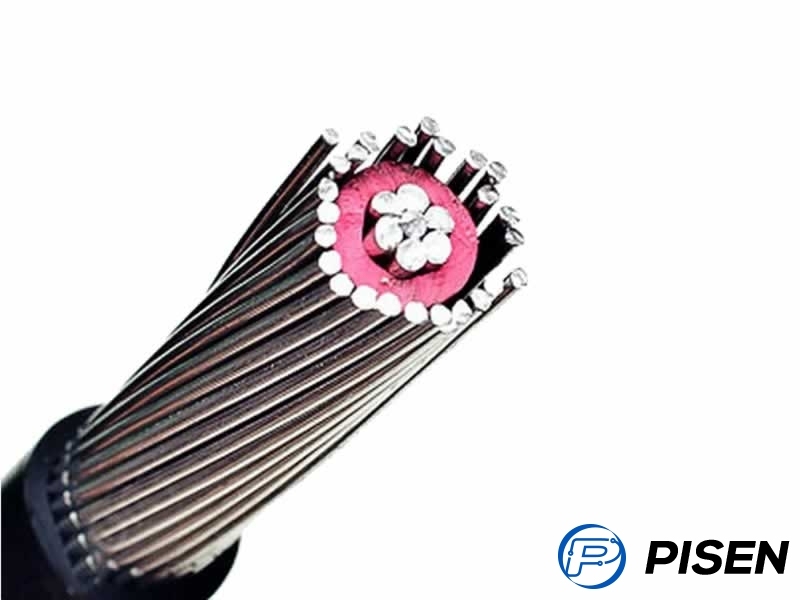

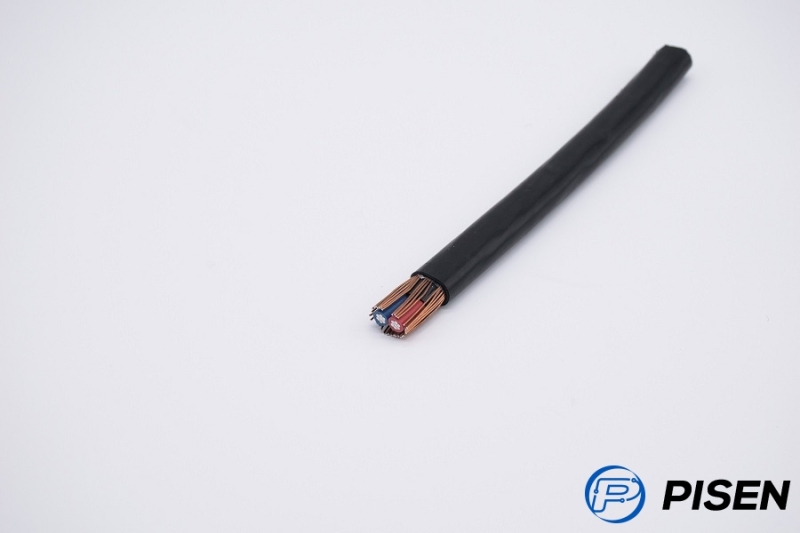

Split Concentric Cable available is sizes 4mm to 35mm and manufactured to British Standard BS7870. The cable features plain annealed stranded copper phase conductor, XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors. XLPE insulated and plain annealed solid strand bare copper earth conductors, PVC outer sheath. Black. 600/1000 volts grade to BS7870.

Conductor: Plain Annealed Stranded Copper Phase Conductor.
Insulation: XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.
Armouring: XLPE Insulated and Plain Annealed Solid Strand Bare Copper Earth Conductors
Sheath: PVC
Sheath Colour: Black
Voltage Rating: 600/1000 Volts
Temperature Rating: -15°C or above +90°C ,Should not be installed at temperatures below 0°C or above +60°C

Application:

Concentric cables are generally used by Distribution Network Operators linking electrical networks and towers to a person’s home or business. Suitable for direct burial, they are also used for sub mains in high rise towers and street lighting systems. The cable consists of a plain annealed stranded copper phase conductor, an XLPE insulation surrounded by a concentric layer of plain annealed solid copper neutral conductors, an XLPE insulated and plain annealed solid strand bare copper earth conductors and a black PVC outer sheath.
