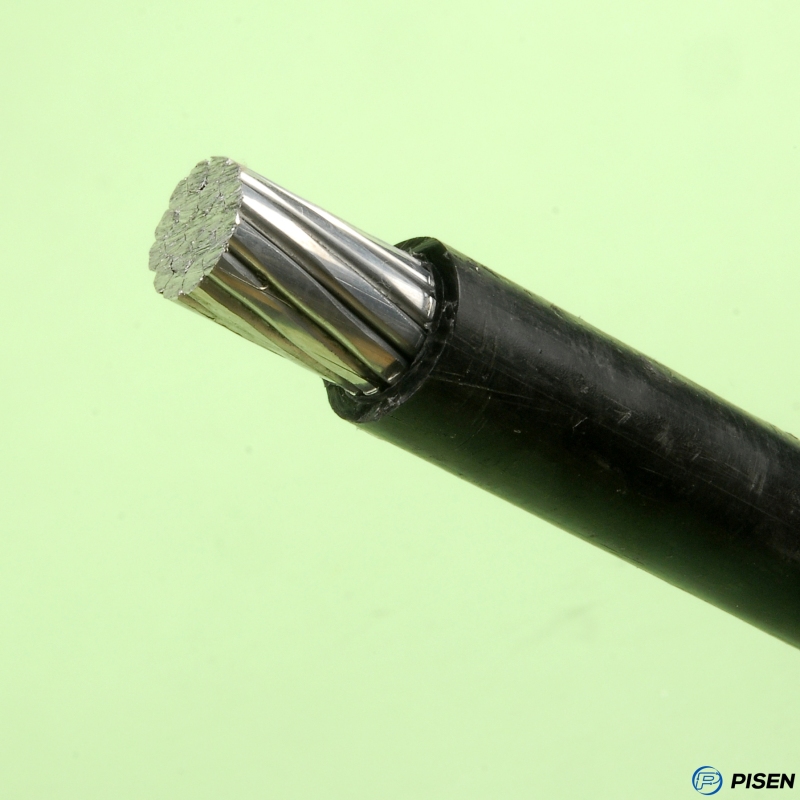

Covered Line Wire (Aluminum Covered Line Wire) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Applications:
Covered line wire is used primarily for 600v secondary overhead power distribution lines. It is not an electrically insulated conductor and often considered a bare conductor.
Construction:

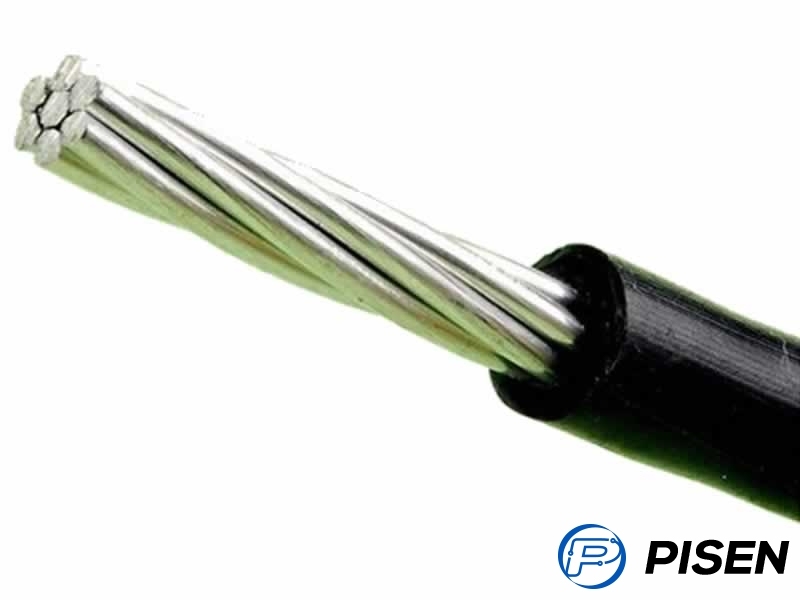

The aluminum conductors are 1350-H19 aluminum, 6201-T81 Aluminum Alloy, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HDPE) or cross-linked polyethylene(XLPE).
Standards:
ASTM B-230 - Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
ASTM B-1248 - Polyethylene Plastics Molding and Extrusion Materials.
ASTM C-8.35 - Specifications for Weather-Resistant Polyethylene-Covered Wire and Cable.
ICEAS-61-402
|
Code Name |
Size |
No. of wires |
Insulation Thickness (mm) |
Overall Diameter (mm) |
Rated Strength (kg) |
Nominal Weight (kg/km) |
Allowable Ampacity + A |
|||
|
AWG or kcmil |
Aluminum |
LDPE |
HDPE |
XLPE |
||||||
|
AAC |
||||||||||
|
Plum |
6 |
7 |
0.762 |
6.198 |
255 |
36.61 |
50.66 |
51.27 |
51.27 |
100 |
|
Apricot |
4 |
7 |
0.762 |
7.239 |
400 |
58.19 |
75.57 |
76.33 |
76.33 |
135 |
|
Peach |
2 |
7 |
1.143 |
9.703 |
612 |
92.56 |
126.09 |
127.55 |
127.55 |
180 |
|
Nectarine |
1 |
7 |
1.143 |
11.481 |
789 |
116.67 |
167.31 |
169.52 |
169.52 |
210 |
|
Quince |
1/0 |
7 |
1.524 |
12.395 |
903 |
147.48 |
203.7 |
206.14 |
206.14 |
240 |
|
Haw |
1/0 |
19 |
1.524 |
12.522 |
980 |
147.48 |
204.49 |
206.96 |
206.96 |
240 |
|
Orange |
2/0 |
7 |
1.524 |
14.834 |
1139 |
186.02 |
257.9 |
261.02 |
261.02 |
280 |
|
Ironwood |
2/0 |
19 |
1.524 |
13.691 |
1211 |
186.02 |
250.41 |
253.21 |
253.21 |
280 |
|
Fig |
3/0 |
7 |
1.524 |
16.307 |
1377 |
233.64 |
315.53 |
319.08 |
319.08 |
320 |
|
Lemon |
3/0 |
19 |
1.524 |
14.986 |
1501 |
233.64 |
306.53 |
309.7 |
309.7 |
320 |
|
Olive |
4/0 |
7 |
1.524 |
16.307 |
1728 |
296.14 |
378.04 |
381.58 |
381.58 |
370 |
|
Pomegranate |
4/0 |
19 |
1.524 |
16.459 |
1823 |
296.14 |
379.09 |
382.69 |
382.69 |
370 |
|
Sassalras |
250 |
19 |
1.524 |
17.628 |
2043 |
348.68 |
439.88 |
443.84 |
443.84 |
420 |
|
Mulberry |
266.8 |
19 |
1.524 |
17.653 |
2182 |
372.19 |
463.59 |
467.55 |
467.55 |
430 |
|
Basswood |
300 |
19 |
1.524 |
18.999 |
2404 |
419.66 |
520.91 |
525.3 |
525.3 |
478 |
|
Anona |
336.4 |
19 |
1.524 |
19.964 |
2697 |
469.51 |
578.04 |
582.75 |
582.75 |
495 |
|
Chinquapin |
350 |
19 |
1.524 |
20.269 |
2790 |
488.12 |
598.98 |
603.79 |
603.79 |
525 |
|
Molles |
397.5 |
19 |
2.032 |
22.454 |
3123 |
555.08 |
707.29 |
713.88 |
713.88 |
550 |
|
Sumac |
450 |
37 |
2.032 |
23.673 |
3719 |
628 |
791.79 |
798.89 |
798.89 |
600 |
|
Huckleberry |
477 |
37 |
2.032 |
24.257 |
3810 |
665.21 |
834.63 |
841.98 |
841.98 |
610 |
|
|
||||||||||
|
Walnut |
6 |
6/1 |
0.762 |
6.553 |
540 |
36.64 |
69.94 |
71.43 |
71.43 |
105 |
|
Butternut |
4 |
6/1 |
0.762 |
7.874 |
844 |
58.04 |
107.15 |
107.15 |
107.15 |
135 |
|
Hickory |
4 |
7/1 |
0.762 |
8.052 |
1070 |
58.04 |
120.54 |
122.03 |
122.03 |
135 |
|
Pignut |
2 |
6/1 |
1.143 |
10.312 |
1293 |
92.27 |
175.6 |
177.09 |
177.09 |
180 |
|
Beech |
2 |
7/1 |
1.143 |
10.643 |
1651 |
92.27 |
199.41 |
199.41 |
199.41 |
180 |
|
Chestnut |
1 |
6/1 |
1.143 |
11.303 |
1610 |
116.37 |
17.27 |
218.76 |
218.76 |
210 |
|
Almond |
1/0 |
6/1 |
1.524 |
13.157 |
1987 |
146.73 |
282.75 |
284.24 |
284.24 |
235 |
|
Pecan |
2/0 |
6/1 |
1.524 |
14.402 |
2404 |
184.98 |
348.23 |
349.72 |
349.72 |
290 |
|
Filbert |
3/0 |
6/1 |
1.524 |
15.799 |
3003 |
233.34 |
430.08 |
433.05 |
433.05 |
305 |
|
Buckeye |
4/0 |
6/1 |
1.524 |
17.348 |
3787 |
394.21 |
531.27 |
535.74 |
535.74 |
345 |
|
Hackberry |
266.8 |
18/1 |
1.524 |
18.517 |
3121 |
372.63 |
525.32 |
528.3 |
528.3 |
356 |
|
|
||||||||||
|
Maple |
6 |
7 |
0.762 |
6.553 |
503 |
42.41 |
59.53 |
61.01 |
61.01 |
78 |
|
Hornbeam |
4 |
7 |
0.762 |
7.874 |
798 |
67.56 |
89.29 |
90.78 |
90.78 |
145 |
|
Linden |
2 |
7 |
1.143 |
10.312 |
1270 |
107.44 |
147.33 |
147.33 |
147.33 |
190 |
|
Oilnut |
1/0 |
7 |
1.524 |
11.887 |
2023 |
170.99 |
238.11 |
247.03 |
247.03 |
250 |
|
Waterash |
2/0 |
7 |
1.524 |
14.402 |
2445 |
215.63 |
291.68 |
302.01 |
302.01 |
290 |
|
Shellbark |
3/0 |
7 |
1.524 |
15.799 |
3080 |
271.59 |
358.65 |
370.55 |
370.55 |
335 |
PISEN Cable is a professional Covered Line Wire (Aluminum Covered Line Wire ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
