H03VV-F,H03VVH2-F (300/300V Copper Round/Flat PVC Insulated PVC Sheathed Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Application:
H03VV-F/H03VVH2-F is round/flat PVC insulated PVC sheathed cable for connecting electric appliances, devices and instruments i.e. table lamp and radio to the power supply network.
Description :
kabel H03VV-F / H03VVH2-F cable are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, offices;for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators). As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.
Construction :
| Conductor |
Bare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
| Insulation |
PVC core insulation to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding (3 conductors and above) |
| Sheath |
PVC outer jacket |
H03VV-F Cable 300/300V Technical Data:
| Rated voltage Uo/U |
300/300V |
| Test voltage |
2000V |
| minimum bending radius |
mobile : 15D;
fixed :4D
(D – diameter or height of cable) |
| minimum temperature during installation |
– 5 °C |
| temperature of environment |
mobile: – 5 °C to
+50 °C; fixed: -30 °C to +50 °C |
| max. conductor temperature at short circuit for 5 s |
160°C |
| maximum conductor temperature |
+70°C |
| Insulation resistance at 70 °C |
min 2 x 1010 Ω.cm |
| flame test |
flame-retardant acc. to IEC 60332-1 |
H03VV-F / H03VVH2-F date sheet :
| AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
| H03VV-F |
| 20(16/32) |
2 x 0.50 |
0.5 |
0.6 |
5 |
9.6 |
38 |
| 20(16/32) |
3 x 0.50 |
0.5 |
0.6 |
5.4 |
14.4 |
45 |
| 20(16/32) |
4 x 0.50 |
0.5 |
0.6 |
5.8 |
19.2 |
55 |
| 18(24/32) |
2 x 0.75 |
0.5 |
0.6 |
5.5 |
14.4 |
46 |
| 18(24/32) |
3 x 0.75 |
0.5 |
0.6 |
6 |
21.6 |
59 |
| 18(24/32) |
4 x 0.75 |
0.5 |
0.6 |
6.5 |
28.8 |
72 |
| 18(24/32) |
5 x 0.75 |
0.5 |
0.6 |
7.1 |
36.0 |
87 |
| kable H03VVH2-F |
| 20(16/32) |
2 x 0.50 |
0.5 |
0.6 |
3.2 x 5.2 |
9.7 |
32 |
| 18(24/32) |
2 x 0.75 |
0.5 |
0.6 |
3.4 x 5.6 |
14.4 |
35 |
PISEN Cable is a professional H03VV-F,H03VVH2-F (300/300V Copper Round/Flat PVC Insulated PVC Sheathed Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
Designed for Appliance and Light Power Connections
The H03VV-F and H03VVH2-F cables are ideal for powering equipment such as lamps, vacuum cleaners, kitchen tools, and office machines. These products are widely adopted by cable manufacturers and electrical wire manufacturers for use in low-mechanical-stress indoor environments.

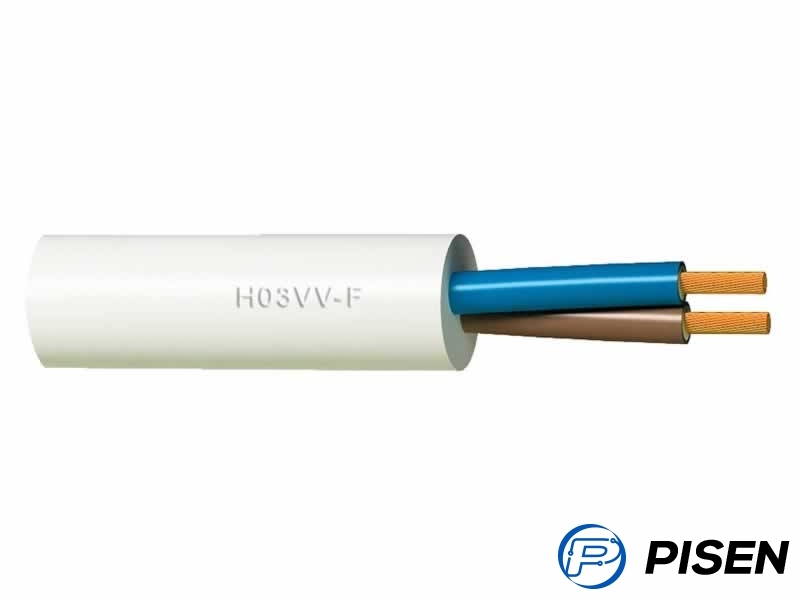

H03VV-F: Round flexible cable for compact routing.
H03VVH2-F: Flat variant, space-saving for embedded or surface installations.
Both are built for performance and safety—hallmarks of trusted wire manufacturers.
Safe PVC Insulation from Trusted Wire Cable Manufacturers
The cables feature flame-retardant, lead-free PVC insulation and outer sheathing, making them a preferred choice among electrical cable manufacturers for residential and commercial use where compliance with safety standards is crucial.
International Compliance for Global Distribution
Compliant with IEC 60227, VDE 0281, and BS 6500 standards, these wires are ideal for bulk distribution by global industrial cable manufacturers, OEM appliance builders, and electrical wholesalers.
Product Advantages
Flexible Round and Flat Options:Choose from round (H03VV-F) and flat (H03VVH2-F) cable designs to meet the space and routing needs of any application—trusted by top wire and cable manufacturers.
Durable PVC Construction:Flame-retardant, lead-free insulation and sheath ensure long-term safety, valued by electrical wire manufacturers and installers.
Ideal for Light-Duty Power Connections:Used in appliances and devices with low mechanical stress, meeting the functional needs of cables companies and product OEMs.
Certified for Global Markets:Built to meet IEC, BS, and VDE requirements, perfect for international trade and projects handled by leading cable manufacturers and wire cable manufacturers.
Available in Bulk and Custom Packaging:Pisen Cable supports bulk wholesale orders, OEM customization, and various packaging forms—trusted by power cable manufacturers and bulk electrical suppliers.
