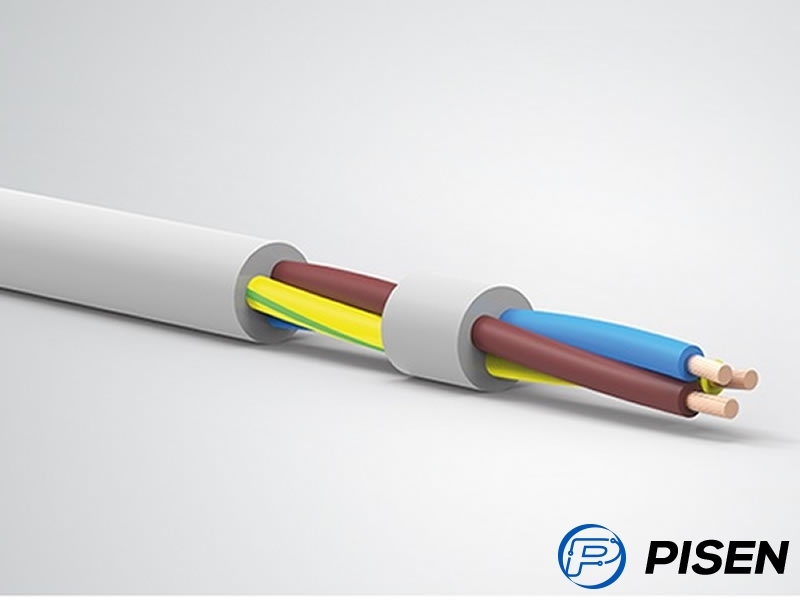

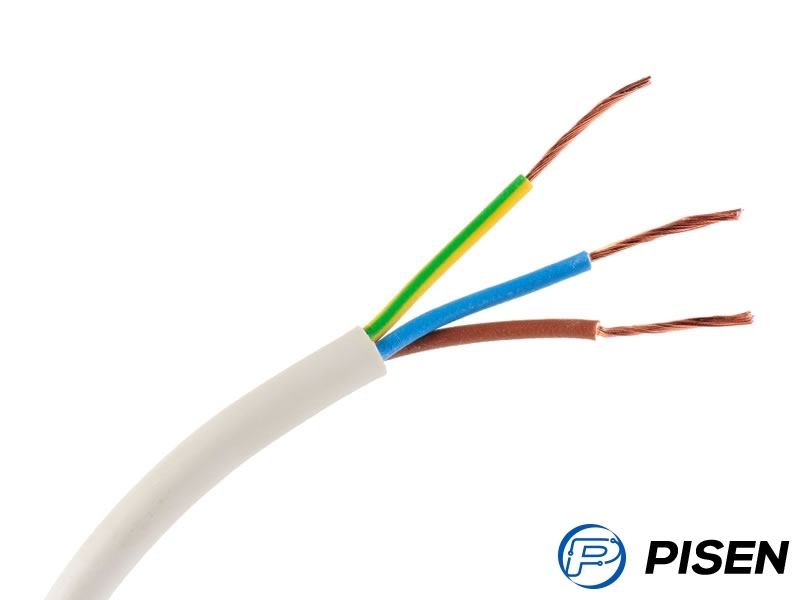

| Conductor | Bare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
| Insulation | PVC core insulation T12 to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding (3 conductors and above) |
| Sheath | PVC |
| Rated voltage Uo/U | 300/500V |
| Test voltage | 2000V |
| minimum bending radius | mobile : 7.5D; fixed : 4D (D – diameter or height of cable) |
| minimum temperature during installation | – 5 °C |
| temperature of environment | mobile: – 5 °C to +70 °C; fixed: -40 °C to +70 °C |
| max. conductor temperature at short circuit for 5 s | 160°C |
| maximum conductor temperature | +70°C |
| Insulation resistance at 70 °C | min 2 x 1010 Ω.cm |
| flame test | flame-retardant acc. to IEC 60332-1 |
| AWG | No. of Cores x Nominal Cross Sectional Area# x mm² | Nominal Overall Diameter mm | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |

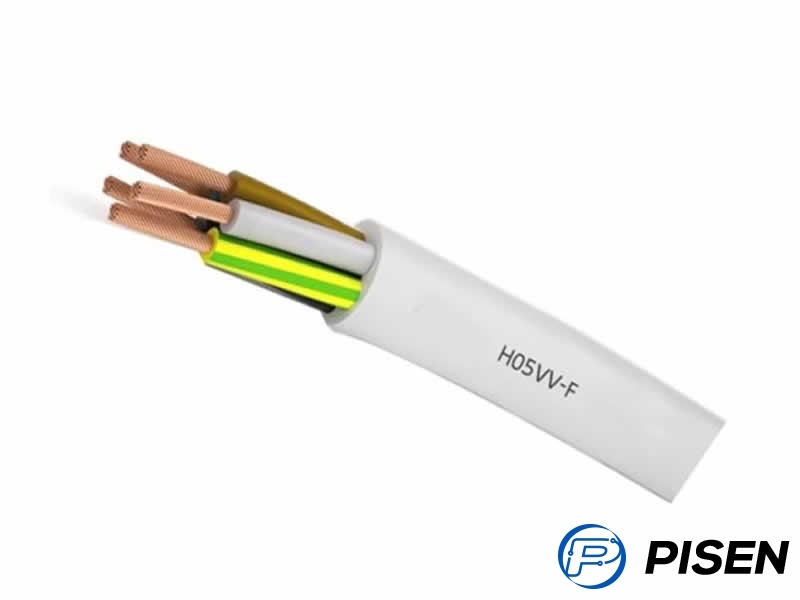

| H05VV-F cable | ||||
| 18(24/32) | 2 x 0.75 | 6.4 | 14.4 | 57 |
| 18(24/32) | 3 x 0.75 | 6.8 | 21.6 | 68 |
| 18(24/32) | 4 x 0.75 | 7.4 | 29 | 84 |
| 18(24/32) | 5 x 0.75 | 8.5 | 36 | 106 |
| 17(32/32) | 2 x 1.00 | 6.8 | 19 | 65 |
| 17(32/32) | 3 x 1.00 | 7.2 | 29 | 79 |
| 17(32/32) | 4 x 1.00 | 8 | 38 | 101 |
| 17(32/32) | 5 x 1.00 | 8.8 | 48 | 123 |
| 16(30/30) | 2 x 1.50 | 7.6 | 29 | 87 |
| 16(30/30) | 3 x 1.50 | 8.2 | 43 | 111 |
| 16(30/30) | 4 x 1.50 | 9.2 | 58 | 142 |
| 16(30/30) | 5 x 1.50 | 10.5 | 72 | 176 |
| 14(30/50) | 2 x 2.50 | 9.2 | 48 | 134 |
| 14(30/50) | 3 x 2.50 | 10.1 | 72 | 169 |
| 14(30/50) | 4 x 2.50 | 11.2 | 96 | 211 |
| 14(30/50) | 5 x 2.50 | 12.4 | 120 | 262 |
| 12(56/28) | 3 x 4.00 | 11.3 | 115 | 233 |
| 12(56/28) | 4 x 4.00 | 12.5 | 154 | 292 |
| 12(56/28) | 5 x 4.00 | 13.7 | 192 | 369 |
| 10(84/28) | 3 x 6.00 | 13.1 | 181 | 328 |
| 10(84/28) | 4 x 6.00 | 13.9 | 230 | 490 |
| H05VVH2-F cable | ||||
| 18(24/32) | 2 x 0.75 | 4.2 x 6.8 | 14.4 | 48 |
| 17(32/32) | 2 x 1.00 | 4.4 x 7.2 | 19.2 | 57 |
