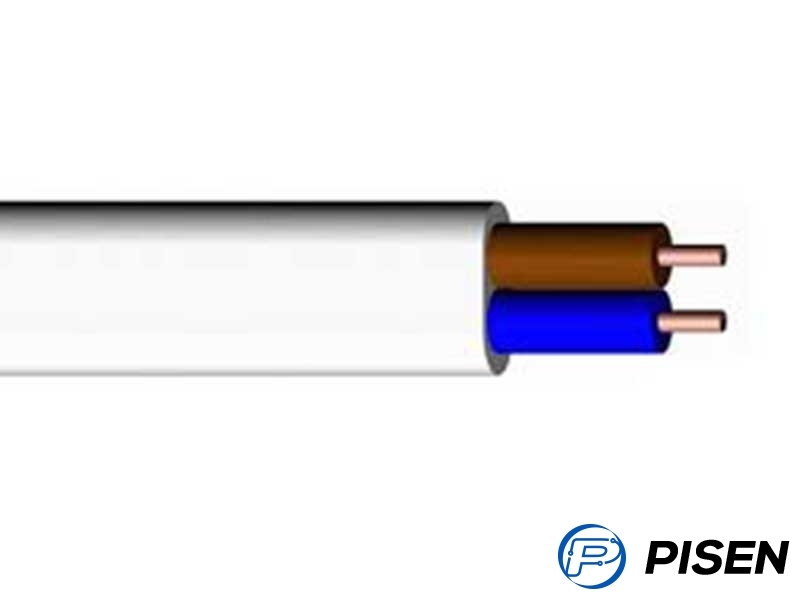

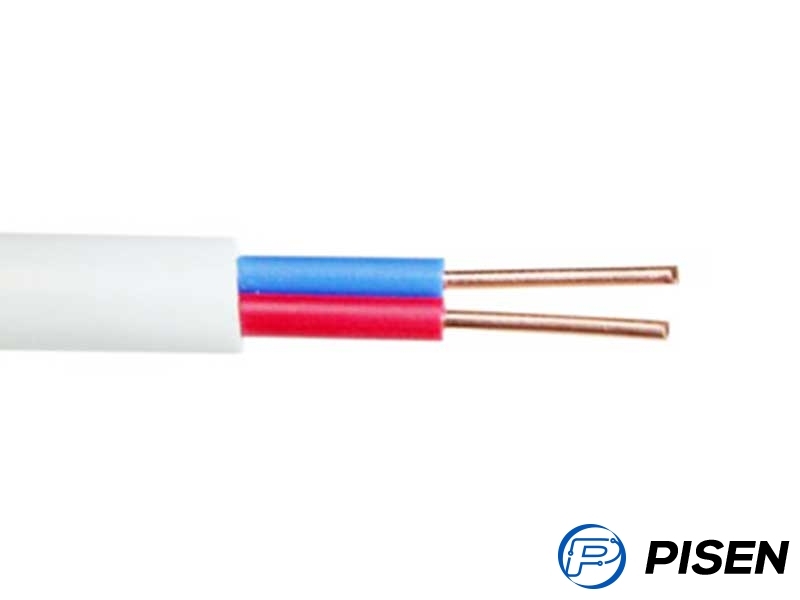

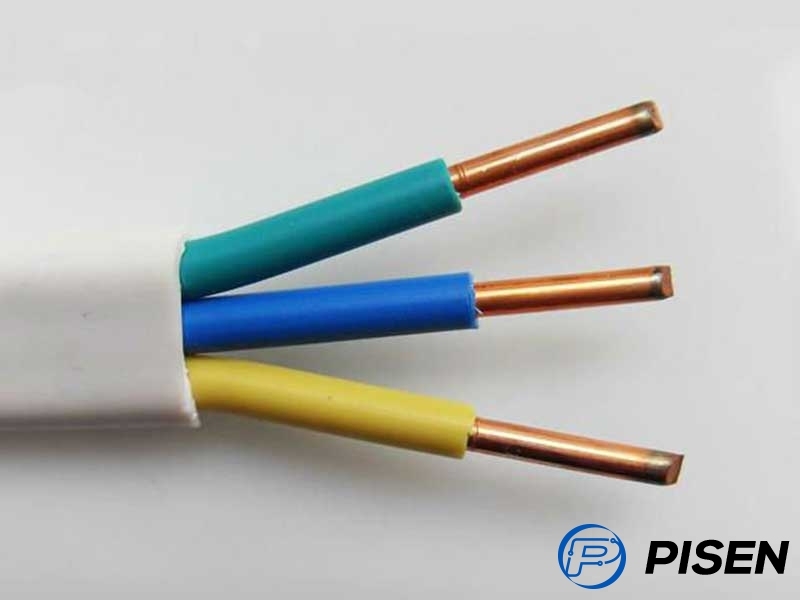

H05VVH-R,H05VVH-U (PVC Insulated and Sheathed Flat cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
|
Nom. Cross Section Area mm2 |
Structure No. x mm |
Approx O.D mm |
Thickness of insulation |
Thickness of sheath |
Approx Weight kg/km |
|
|
Cu |
Al |
|||||
|
2X1.0 |
1 X1.13 |
4.6X7.3 |
0.6 |
0.9 |
51.0 |
18.1 |
|
2X1.5 |
1X1.38 |
5.2X8.2 |
0.7 |
0.9 |
65.9 |
12.1 |
|
2X2.5 |
1X1.78 |
5.6X9.6 |
0.8 |
1.0 |
95.7 |
64.9 |
|
2X4.0 |
1X2.25 |
6.2X10 |
0.8 |
1.0 |
146.0 |
80.7 |
|
2X6.0 |
1X2.76 |
6.8X11.6 |
0.8 |
1.1 |
200.0 |
104.0 |
|
2X10.0 |
7X1.35 |
8.3X14.2 |
1.0 |
1.2 |
323.0 |
177.0 |
|
3X1.0 |
1 X1.13 |
4.6X9.5 |
0.6 |
0.9 |
74.3 |
/ |
|
3X1.5 |
1X1.38 |
5.2X10.8 |
0.7 |
0.9 |
95.6 |
/ |
|
3X2.5 |
1X1.78 |
5.6X12.4 |
0.8 |
1.0 |
140.0 |
93.9 |
|
3X4.0 |
1X2.25 |
6.2X13.6 |
0.8 |
1.0 |
220.0 |
123.0 |
|
3X6.0 |
1X2.76 |
6.8X16.0 |
0.8 |
1.1 |
295.0 |
153.0 |
|
3X10.0 |
7X1.35 |
8.3X20.8 |
1.0 |
1.2 |
485.0 |
261.0 |
PISEN Cable is a professional H05VVH-R,H05VVH-U (PVC Insulated and Sheathed Flat cable ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
