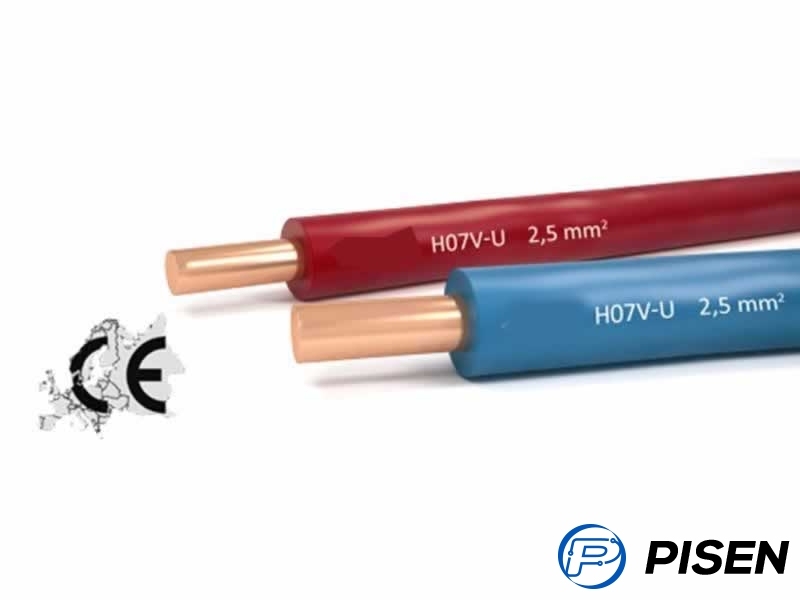

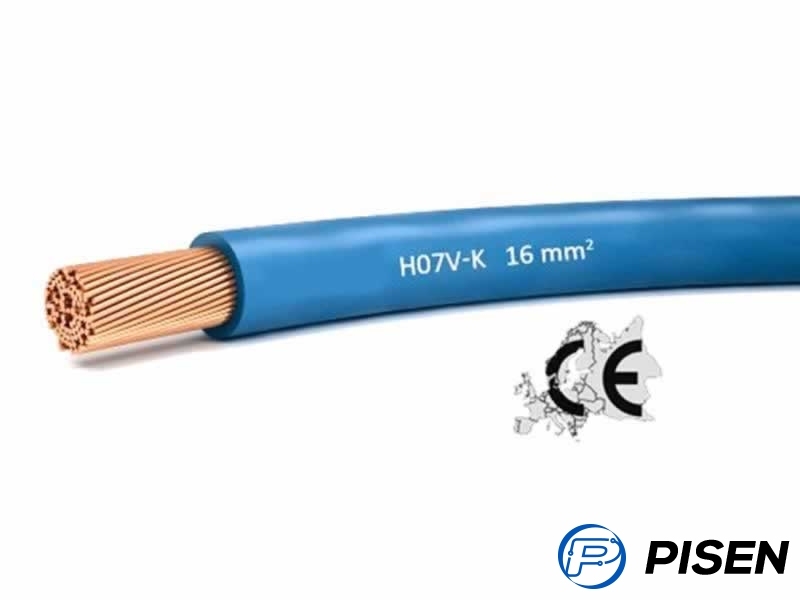

| Conductor material: | H07V-U Solid Copper Class 1 to VDE0295/IEC60228 H07V-R Stranded Copper wire Class 2 to VDE0295/IEC60228 H07V-K Bare copper strands Class 5 to VDE-0295/IEC 60228 |
| Insulation: | PVC |
| Rated voltage | 450/750V |
| Test voltage | 2500V |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing temperature | -5º C to +70º C |
| Static temperature | -30º C to +80º C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 10 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
| 16(30/30) | 1 x 1.5 | 3.1 | 14.4 | 20 |
| 14(50/30) | 1 x 2.5 | 3.6 | 24 | 31 |
| 12(56/28) | 1 x 4 | 4.3 | 38 | 48 |
| 10(84/28) | 1 x 6 | 4.9 | 58 | 69 |
| 8(80/26) | 1 x 10 | 6.4 | 96 | 121 |
| 6(128/26) | 1 x 16 | 8.1 | 154 | 211 |
| 4 (200/26) | 1 x 25 | 9.8 | 240 | 303 |
| 2 (280/26) | 1 x 35 | 11.1 | 336 | 417 |
| 1 (400/26) | 1 x 50 | 13.1 | 480 | 539 |
| 2/0 (356/24) | 1 x 70 | 15.5 | 672 | 730 |
| 3/0 (485/24) | 1 x 95 | 17.2 | 912 | 900 |
| 4/0 (614/24) | 1 x 120 | 19.7 | 1152 | 1135 |
| 300 MCM (765/24) | 1 x 150 | 21.3 | 1440 | 1410 |
| 350 MCM (944/24) | 1 x 185 | 23.4 | 1776 | 1845 |
| 500MCM(1225/24) | 1 x 240 | 27.1 | 2304 | 2270 |
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
| 20 | 1 x 0.5 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 3.5 | 24 | 33 |
| 12 | 1 x 4 | 3.9 | 38 | 49 |
| 10 | 1 x 6 | 4.5 | 58 | 69 |
| 8 | 1 x 10 | 5.7 | 96 | 115 |
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Overall Diameter |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
| 16(7/24) | 1 x 1.5 | 3 | 14.4 | 23 |
| 14(7/22) | 1 x 2.5 | 3.6 | 24 | 35 |
| 12(7/20) | 1 x 4 | 4.2 | 39 | 51 |
| 10(7/18) | 1 x 6 | 4.7 | 58 | 71 |
| 8(7/16) | 1 x 10 | 6.1 | 96 | 120 |
| 6(7/14) | 1 x 16 | 7.2 | 154 | 170 |
| 4(7/12) | 1 x 25 | 8.4 | 240 | 260 |
| 2(7/10) | 1 x 35 | 9.5 | 336 | 350 |
| 1(19/13) | 1 x 50 | 11.3 | 480 | 480 |
| 2/0(19/11) | 1 x 70 | 12.6 | 672 | 680 |
| 3/0(19/10) | 1 x 95 | 14.7 | 912 | 930 |
| 4/0(37/12) | 1 x 120 | 16.2 | 1152 | 1160 |
| 300MCM(37/11) | 1 x 150 | 18.1 | 1440 | 1430 |
| 350MCM(37/10) | 1 x 185 | 20.2 | 1776 | 1780 |
| 500MCM(61/11) | 1 x 240 | 22.9 | 2304 | 2360 |
| 1 x 300 | 24.5 | 2880 | 2940 | |
| 1 x 400 | 27.5 | 3840 | 3740 |
