LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Low Voltage PVC Insulated PVC Sheathed Power Cable.
Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.
Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
Construction:

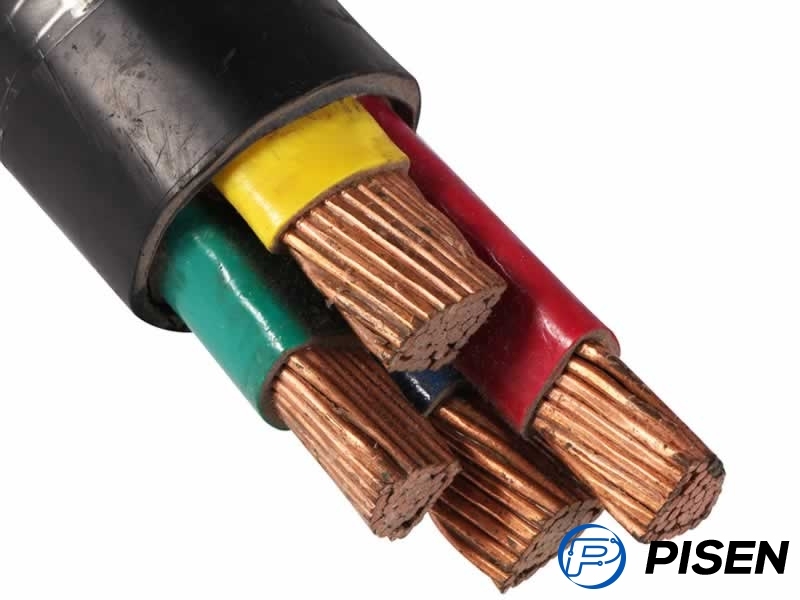

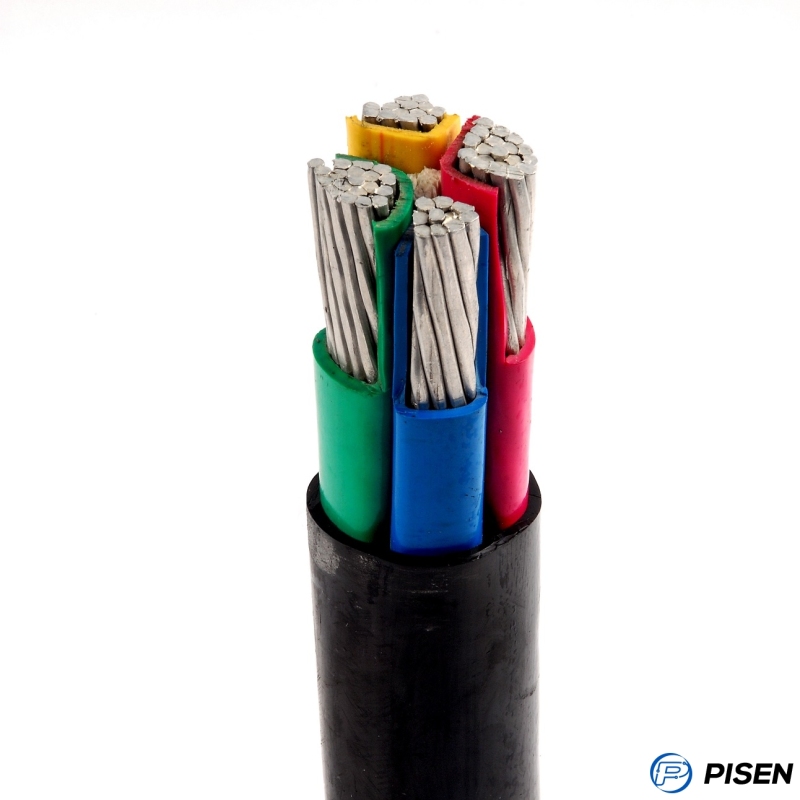

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.
| 0.6/1kV PVC Insulated Power Cable |
Conductor |
Insulation |
Armor |
Outer Sheath |
| Aluminum |
Copper |
PVC |
SW |
ST |
DST |
AW |
PVC |
PE |
| Cu/PVC/PVC |
|
P |
P |
--- |
--- |
--- |
--- |
P |
|
| Cu/PVC/PE |
|
P |
P |
--- |
--- |
--- |
--- |
|
P |
| Al/PVC/PVC |
P |
|
P |
--- |
--- |
--- |
--- |
P |
|
| Al/PVC/PE |
P |
|
P |
--- |
--- |
--- |
--- |
|
P |
| Cu/PVC/STA/PVC |
|
P |
P |
--- |
P |
--- |
--- |
P |
|
| Cu/PVC/STA/PE |
|
P |
P |
--- |
P |
--- |
--- |
|
P |
| Al/PVC/STA/PVC |
P |
|
P |
--- |
P |
--- |
--- |
P |
|
| Al/PVC/STA/PE |
P |
|
P |
--- |
P |
--- |
--- |
|
P |
| Cu/PVC/DSTA/PVC |
|
P |
P |
--- |
--- |
P |
--- |
P |
|
| Cu/PVC/DSTA/PE |
|
P |
P |
--- |
--- |
P |
--- |
|
P |
| Al/PVC/DSTA/PVC |
P |
|
P |
--- |
--- |
P |
--- |
P |
|
| Al/PVC/DSTA/PE |
P |
|
P |
--- |
--- |
P |
--- |
|
P |
| Cu/PVC/SWA/PVC |
|
P |
P |
P |
--- |
--- |
--- |
P |
|
| Cu/PVC/SWA/PE |
|
P |
P |
P |
--- |
--- |
--- |
|
P |
| Al/PVC/SWA/PVC |
P |
|
P |
P |
--- |
--- |
--- |
P |
|
| Al/PVC/SWA/PE |
P |
|
P |
P |
--- |
--- |
--- |
|
P |
| Cu/PVC/AWA/PVC |
|
P |
P |
--- |
--- |
--- |
P |
P |
|
| Cu/PVC/AWA/PE |
|
P |
P |
--- |
--- |
--- |
P |
|
P |
| Al/PVC/AWA/PVC |
P |
|
P |
--- |
--- |
--- |
P |
P |
|
| Al/PVC/AWA/PE |
P |
|
P |
--- |
--- |
--- |
P |
|
P |
| Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire |
It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.
Low Voltage PVC Power Cable
Voltage rating |
No. x Nominal Cross Section of Conductor No. x mm2 |
| single core |
two cores |
three cores |
3+1 cores |
Four cores |
3+2 cores |
4+1 cores |
5 core |
| 0.6/1 kV |
1x4 mm2 |
2x4 mm2 |
3x4 mm2 |
3x4 mm2 + 1x2.5mm2 |
4x4 mm2 |
3x4 mm2 + 2x2.5mm2 |
4x4 mm2 + 1x2.5mm2 |
5x2.5 mm2 |
| 1x6 mm2 |
2x6 mm2 |
3x6 mm2 |
3x6 mm2 + 1x4 mm2 |
4x6 mm2 |
3x6 mm2 + 2x4 mm2 |
4x6 mm2 + 1x4 mm2 |
5x4 mm2 |
| 1x10 mm2 |
2x10 mm2 |
3x10 mm2 |
3x10 mm2 + 1x6 mm2 |
4x10 mm2 |
3x10 mm2 + 2x6 mm2 |
4x10 mm2 + 1x6 mm2 |
5x6 mm2 |
| 1x16 mm2 |
2x16 mm2 |
3x16mm2 |
3x16 mm2 + 1x10 mm2 |
4x16 mm2 |
3x16 mm2 + 2x10 mm2 |
4x16 mm2 + 1x10 mm2 |
5x10 mm2 |
| 1x 25 mm2 |
2x 25 mm2 |
3x 25 mm2 |
3x25 mm2 + 1x16mm2 |
4x25 mm2 |
3x25 mm2 + 2x16mm2 |
4x25 mm2 + 1x16mm2 |
5x16 mm2 |
| 1x35 mm2 |
2x35 mm2 |
3x 35 mm2 |
3x35 mm2 + 1x16mm2 |
4x35 mm2 |
3x35 mm2 + 2x16mm2 |
4x35 mm2 + 1x16mm2 |
5x25 mm2 |
| 1x50 mm2 |
2x50 mm2 |
3x 50 mm2 |
3x50 mm2 + 1x25mm2 |
4x50 mm2 |
3x50 mm2 + 2x25mm2 |
4x50 mm2 + 1x25mm2 |
5x35 mm2 |
| 1x70 mm2 |
2x70 mm2 |
3x 70 mm2 |
3x70 mm2 + 1x35mm2 |
4x70 mm2 |
3x70 mm2 + 2x35mm2 |
4x70 mm2 + 1x35mm2 |
5x50 mm2 |
| 1x95 mm2 |
2x95 mm2 |
3x 95 mm2 |
3x95 mm2 + 1x50mm2 |
4x95 mm2 |
3x95 mm2 + 2x50mm2 |
4x95 mm2 + 1x50mm2 |
5x70 mm2 |
| 1x120 mm2 |
2x120 mm2 |
3x 120 mm2 |
3x120mm2 + 1x70mm2 |
4x120 mm2 |
3x120mm2 + 2x70mm2 |
4x120mm2 + 1x70mm2 |
5x95 mm2 |
| 1x150 mm2 |
2x150 mm2 |
3x 150 mm2 |
3x150mm2 + 1x70mm2 |
4x150 mm2 |
3x150mm2 + 2x70mm2 |
4x150mm2 + 1x70mm2 |
|
| 1x185 mm2 |
2x185 mm2 |
3x 185 mm2 |
3x185mm2 + 1x95mm2 |
4x185 mm2 |
3x185mm2 + 2x95mm2 |
4x185mm2 + 1x95mm2 |
|
| 1x240 mm2 |
2x240 mm2 |
3x 240 mm2 |
3x240mm2 + 1x120mm2 |
4x240 mm2 |
3x240mm2 + 2x120mm2 |
4x240mm2 + 1x120mm2 |
|
| 1x300 mm2 |
|
3x 300 mm2 |
3x300mm2 + 1x150mm2 |
4x300 mm2 |
3x300mm2 + 2x150mm2 |
4x300mm2 + 1x150mm2 |
|
| 1x400 mm2 |
|
|
|
|
|
|
|
| 1x500 mm2 |
|
|
|
|
|
|
|
| 1x630 mm2 |
|
|
|
|
|
|
|
PISEN Cable is a professional LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
Engineered for Low-Voltage Energy Transmission
The LV PVC Power Cable by Pisen Cable is a tailored solution for stable energy delivery in low-voltage environments. Designed for power stations, industrial facilities, and building installations, it supports rated voltages up to 0.6/1kV. With flexible construction and a circular, compact structure, this power cable simplifies deployment across various fixed installations. It is ideal for users needing steady, uninterrupted power where layout flexibility and durability are paramount.
PVC Insulation and Sheath for Reliable Performance
This cable features a Class 1 or Class 2 annealed copper conductor per IEC standards, enclosed in a robust PVC insulation and sheath system. The insulation ensures electrical integrity, while the outer sheath provides mechanical protection in indoor environments. The construction meets GB/T12706.1-2020 standards, offering resistance to abrasion, corrosion, and moderate mechanical stress. These technical advantages make it a dependable electrical wire for controlled conditions.
Broad Application in Fixed Installations
Optimized for fixed wiring, this product finds utility in cable trenches, conduits, and indoor environments where mobility is limited. Whether used in residential building wiring, commercial complexes, or light industrial setups, it excels in scenarios demanding efficient wire and cable integration. It ensures consistent electrical transmission and long-term safety with minimal maintenance requirements.
Product Advantages
Compact Multi-Core Configuration for Space Efficiency
The cable supports up to 5 cores in a tight circular structure, minimizing the installation footprint. Its efficient form factor allows multiple runs in limited duct space, reducing installation costs. This structural advantage, combined with its flexibility, ensures better routing and system adaptability—critical factors for house wiring projects where space and layout can be constrained.
Enhanced Conductor Quality for Electrical Stability
Using high-purity copper conductors compliant with IEC 60228, this cable provides low electrical resistance and stable current flow. Whether in 1-core or 5-core configurations, it delivers uniform performance, reducing heat generation and energy loss. These features make it a go-to electrical conductor solution for systems where safety and efficiency are priorities.
PVC Formulation for Indoor Durability
The proprietary PVC blend used for both insulation and sheathing enhances mechanical robustness, offering protection from humidity, mild chemicals, and installation stresses. Rated for ambient temperatures of up to 70°C, the cable remains functional and safe under regular indoor conditions. It is a cost-effective choice for environments that don't demand the specialized capabilities of xlpe cable systems but still require long-term resilience.
Use Scenarios
Building Contractors Handling Indoor Electrical Installations
Contractors executing residential or commercial projects can depend on this cable for interior energy distribution. When routing wires through walls, ceilings, or conduits, its flexibility and compact build simplify layout. The cable wire structure resists bending stress and facilitates cleaner terminations—ensuring long-lasting results in standard electrical cord deployments.
Industrial Facilities Seeking Organized Power Layouts
For light industrial workshops or factory setups requiring structured energy lines, this product integrates easily into trays and conduits. The copper conductors ensure dependable power for equipment while the PVC sheath defends against wear from movement and ambient exposure. Facilities gain a stable wire cable infrastructure without resorting to heavier-duty solutions like welding cable or armored systems.
Electrical Designers Specifying Cost-Efficient Cable Systems
When specifying components for power control panels or fixed distribution points, electrical designers will find this product aligns with both regulatory and practical needs. Its availability in single and multi-core options allows design flexibility, while the certified build ensures compliance. It supports electrical cable price constraints without sacrificing quality or safety, making it an ideal match for budget-sensitive projects.
About Us
Pisen Cable is a specialized manufacturer and exporter of premium wire and cable products headquartered in China. With extensive experience in producing low- and medium-voltage cables, control cables, and specialty wires, the company has built a strong reputation for quality and compliance. Operating under ISO and national standards such as GB/T and IEC, Pisen Cable serves global clients across construction, energy, and manufacturing sectors. Its product line covers a wide range of applications including pvc cable, control cable, and renewable energy systems. Focused on technical innovation and dependable delivery, Pisen Cable partners with contractors, distributors, and infrastructure developers to ensure efficient, long-term performance in every installation.
Contact Pisen Cable today to get a detailed quote or expert consultation for your next wiring project!
FAQ
Is this cable suitable for outdoor installations?
No, this cable is designed for indoor use only and lacks UV and moisture-resistant properties required for outdoor environments.
Does the cable comply with international standards?
Yes, it complies with GB/T12706.1-2020 and IEC 60228 standards, ensuring global compatibility and safe operation.
Can this cable be used for underground applications?
It is suitable for buried conduit installations but not for direct burial without additional protection or specifications.
What is the maximum conductor temperature?
The maximum operating temperature is 70°C, in line with standard pvc cable characteristics for low-voltage systems.
Are cable accessories like connectors available from Pisen Cable?
Yes, Pisen Cable offers compatible cable connectors and accessories upon request to support system integration.
