Name: LV XLPE Power Cable,Low Voltage XLPE Insulated PVC Sheathed Power Cable
Brand: HENAN PISEN WIRE & CABLE CO.,LTD
SKU: 22
Availability: InStock
Rating: 5 (1 reviews)

Home > Power Cable

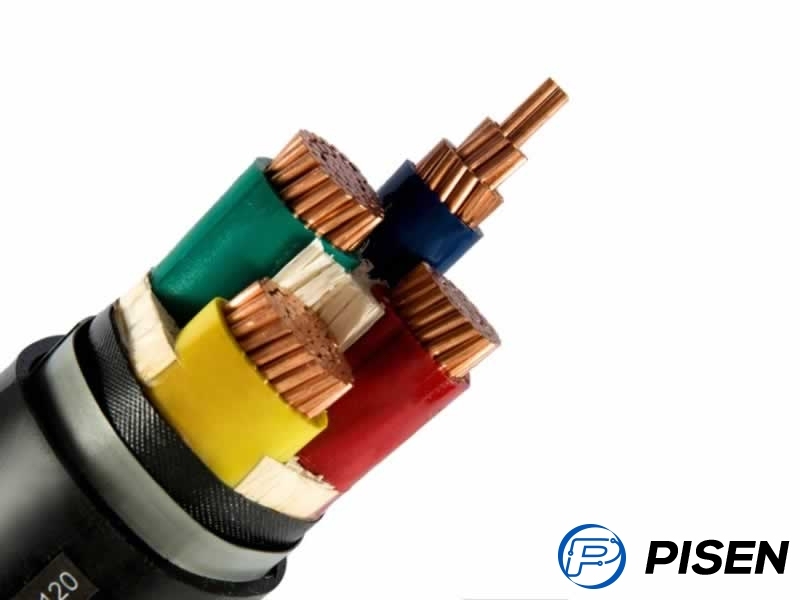

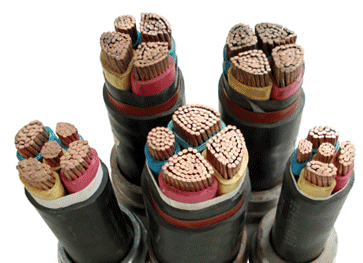

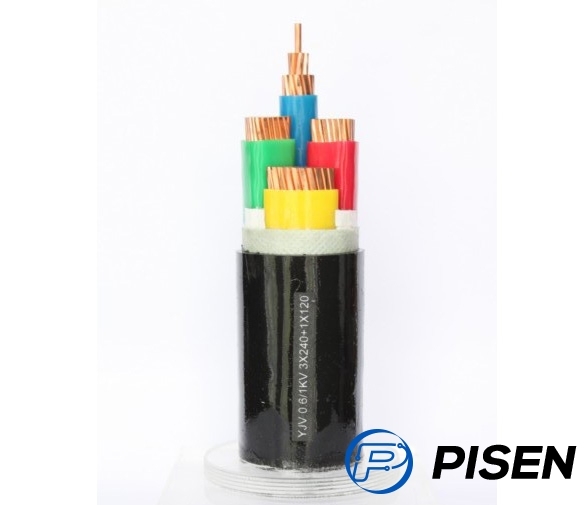

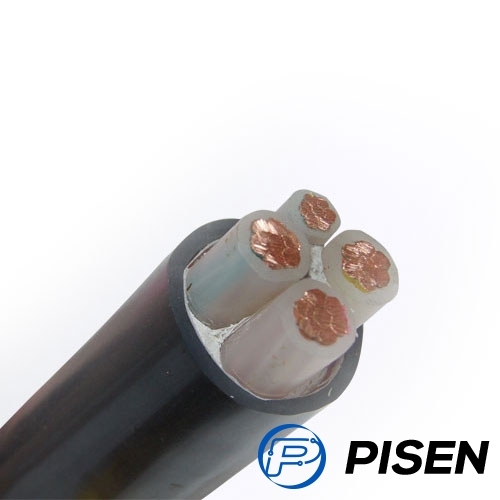

LV XLPE Power Cable,Low Voltage XLPE Insulated PVC Sheathed Power Cable

Description

LV XLPE Power Cable meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

All type of Low Voltage XLPE Insulated PVC Sheathed Power Cable.

1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Application:

Low Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 1kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Property:

1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.

2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.

3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

4.Excellent electrical performance, resistance to chemical corrosion.

5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

Voltage rating for XLPE Power Cable	No. x Nominal Cross Section of Conductor No. x mm2
Voltage rating for XLPE Power Cable	1 core	2 core	3 core	3+1 core	4core	3+2 core	4+1 core	5 core
0.6/1 kV	1x4 mm2	2x4 mm2	3x4 mm2	3x4 mm2 + 1x2.5mm2	4x4 mm2	3x4 mm2 + 2x2.5mm2	4x4 mm2 + 1x2.5mm2	5x2.5 mm2
	1x6 mm2	2x6 mm2	3x6 mm2	3x6 mm2 + 1x4 mm2	4x6 mm2	3x6 mm2 + 2x4 mm2	4x6 mm2 + 1x4 mm2	5x4 mm2
	1x10 mm2	2x10 mm2	3x10 mm2	3x10 mm2 + 1x6 mm2	4x10 mm2	3x10 mm2 + 2x6 mm2	4x10 mm2 + 1x6 mm2	5x6 mm2
	1x16 mm2	2x16 mm2	3x16mm2	3x16 mm2 + 1x10 mm2	4x16 mm2	3x16 mm2 + 2x10 mm2	4x16 mm2 + 1x10 mm2	5x10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	3x25 mm2 + 1x16mm2	4x25 mm2	3x25 mm2 + 2x16mm2	4x25 mm2 + 1x16mm2	5x16 mm2
	1x35 mm2	2x35 mm2	3x 35 mm2	3x35 mm2 + 1x16mm2	4x35 mm2	3x35 mm2 + 2x16mm2	4x35 mm2 + 1x16mm2	5x25 mm2
	1x50 mm2	2x50 mm2	3x 50 mm2	3x50 mm2 + 1x25mm2	4x50 mm2	3x50 mm2 + 2x25mm2	4x50 mm2 + 1x25mm2	5x35 mm2
	1x70 mm2	2x70 mm2	3x 70 mm2	3x70 mm2 + 1x35mm2	4x70 mm2	3x70 mm2 + 2x35mm2	4x70 mm2 + 1x35mm2	5x50 mm2
	1x95 mm2	2x95 mm2	3x 95 mm2	3x95 mm2 + 1x50mm2	4x95 mm2	3x95 mm2 + 2x50mm2	4x95 mm2 + 1x50mm2	5x70 mm2
	1x120 mm2	2x120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4x120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5x95 mm2
	1x150 mm2	2x150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4x150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
	1x185 mm2	2x185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4x185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
	1x240 mm2		3x 240 mm2	3x240mm2 + 1x120mm2	4x240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
	1x300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4x300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
	1x400 mm2
	1x500 mm2

PISEN Cable is a professional LV XLPE Power Cable (Low Voltage XLPE Insulated PVC Sheathed Power Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
