Description
Medium Voltage tree wire (Medium Voltage Covered Conductor) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Application:
Medium Voltage Covered Conductors provide the effective solutions to prevent the revenue loss due to theft by direct tapping, tree faults and other problems associated with bare overhead conductors. Covered conductors have been tested across two conductors of 22kV for upto 300 hrs, after which the test was discontinued. This has proved the reliability and effectiveness of MVCC in preventing the system failure on account of transient faults created in system due to falling trees or branches.
Construction:

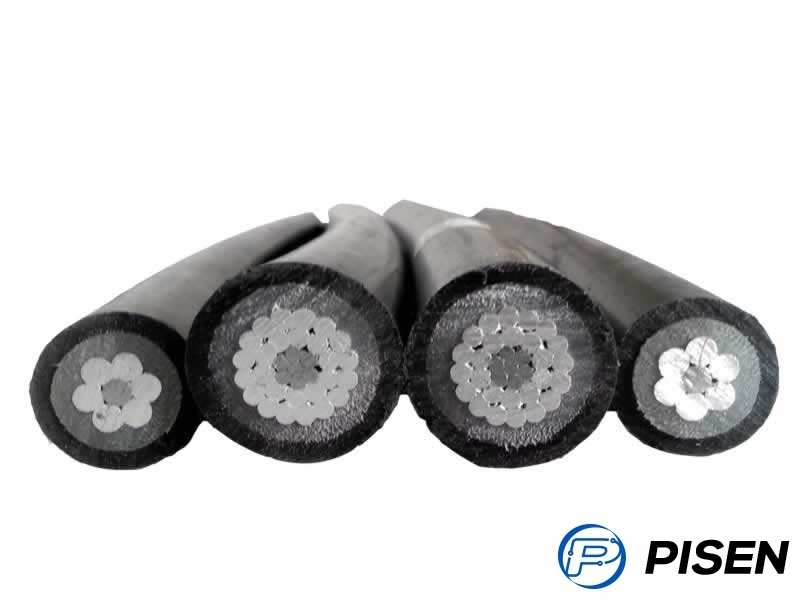

Covered conductors consist of stranded hard drawn aluminum conductors with either one, two or three extruded layers depending on the voltage rating. Covered conductors are available in black or gray depending on visual preference. In a Covered Aerial MV System (formerly called Spacer Cable), spacers hold three MV phase conductors in close approximation. The spacers are suspended from a high-strength messenger wire. Covered Aerial MV (CAMV) cable itself is a single aluminum conductor protected by a layer of track-resistant polyethylene.
Conductor: 1. stranded aluminum wires (AAC). 2. compacted stranded aluminum conductor (AAC)
Insulation: 1. black thermosetting cross-linked polyethylene (XLPE). 2. thermoplastic low density polyethylene (LDPE). 3.thermoplastic high density polyethylene (HDPE)
Voltage Grade of Tree wire:
1.5kV
2.15kV TP (For Treed Areas)
3.15kV (For Non-Treed Areas)
4. 25kV
5. 35kV
6.46kV
PISEN Cable is a professional Medium Voltage tree wire (Medium Voltage Covered Conductor ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
