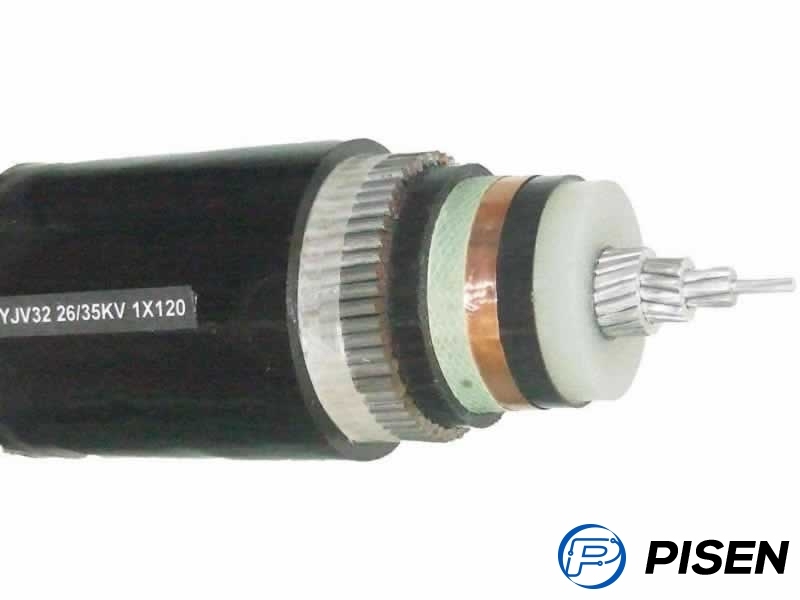

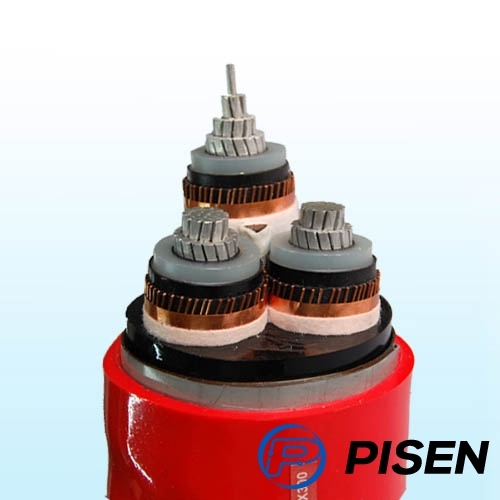

Pisen Cable’s Medium Voltage XLPE Armoured Power Cable offers excellent electrical performance and is designed for long-term use in harsh environments. Ideal for medium voltage transmission, this cable ensures safety and durability, making it suitable for power plants, construction sites, and more.
Our cable is designed to operate at conductor temperatures up to 90°C during continuous use, ensuring optimal performance under regular conditions. In case of short circuits (up to 5 seconds), the conductor withstands temperatures up to 250°C, ensuring safety during critical moments.
This cable can operate efficiently in diverse environmental settings, including temperatures up to 40°C in the air and 25°C underground. With excellent resistance to chemical corrosion, it is ideal for outdoor and underground installations.
The cross-linked polyethylene (XLPE) insulation provides excellent electrical properties, ensuring reliable performance even in demanding applications. It is resistant to heat, chemicals, and physical stress, making it perfect for industries requiring long-term power solutions.
| 3.6/6(7.2)kV, 3.8/6.6(7.2)kV, 6/10(12)kV,6.35/11(12)kV, 8.7/10(15)kV,8.7/15(17.5)kV, 12/20(22)kV,12.7/22(24)kV, 12.7/22(24)kV,18/30(36)kV, 19/33(36)kV XLPE Insulated Power Cable |
Conductor | Insulation | Armor | Outer Sheath | |||||
| Aluminum | Copper | XLPE | SW | ST | DST | AW | PVC | PE | |
| Cu/XLPE/PVC | P | P | --- | --- | --- | --- | P | ||
| Cu/ XLPE /PE | P | P | --- | --- | --- | --- | P | ||
| Al/ XLPE /PVC | P | P | --- | --- | --- | --- | P | ||
| Al/ XLPE /PE | P | P | --- | --- | --- | --- | P | ||
| Cu/ XLPE /STA/PVC | P | P | --- | P | --- | --- | P | ||
| Cu/ XLPE /STA/PE | P | P | --- | P | --- | --- | P | ||
| Al/ XLPE /STA/PVC | P | P | --- | P | --- | --- | P | ||
| Al/ XLPE /STA/PE | P | P | --- | P | --- | --- | P | ||
| Cu/ XLPE /DSTA/PVC | P | P | --- | --- | P | --- | P | ||
| Cu/ XLPE /DSTA/PE | P | P | --- | --- | P | --- | P | ||
| Al/ XLPE /DSTA/PVC | P | P | --- | --- | P | --- | P | ||
| Al/ XLPE /DSTA/PE | P | P | --- | --- | P | --- | P | ||
| Cu/ XLPE /SWA/PVC | P | P | P | --- | --- | --- | P | ||
| Cu/ XLPE /SWA/PE | P | P | P | --- | --- | --- | P | ||
| Al/PVC/SWA/PVC | P | P | P | --- | --- | --- | P | ||
| Al/PVC/SWA/PE | P | P | P | --- | --- | --- | P | ||
| Cu/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
| Cu/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
| Al/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
| Al/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
| Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire | |||||||||
| Voltage rating for Medium Voltage XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 |
|
| 1 core | 3 core | |
|
3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 21/35(40.5)kV 26/35(40.5)kV |
1x 25 mm2 | 3x 25 mm2 |
| 1x35 mm2 | 3x 35 mm2 | |
| 1x50 mm2 | 3x 50 mm2 | |
| 1x70 mm2 | 3x 70 mm2 | |
| 1x95 mm2 | 3x 95 mm2 | |
| 1x120 mm2 | 3x 120 mm2 | |
| 1x150 mm2 | 3x 150 mm2 | |
| 1x185 mm2 | 3x 185 mm2 | |
| 1x240 mm2 | 3x 240 mm2 | |
| 1x300 mm2 | 3x 300 mm2 | |
| 1x400 mm2 | 3x 400 mm2 | |
| 1x500 mm2 | 3x 500 mm2 | |
| 1x630 mm2 | ||
