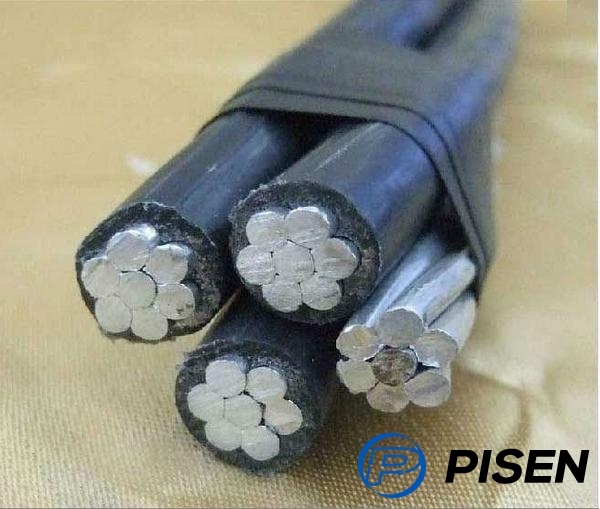

Quadruplex cable (Quadruplex service drop cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Applications:
Used as overhead cable to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specifications:
Quadruplex service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474.
Construction:
The aluminum conductors of this insulated cable are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)
|
Code Name |
Phase conductor |
Bare Neutral Message |
Nominal Weight (kg/km) |
Allowable Ampacity |
||||||
|
Size & No.of wires |
Insulation Thick(mm) |
Nominal Diameter (mm) |
Size & No.of wires |
Rated Strength (kg) |
XLPE |
Aluminum |
Total |
(A) |
||
|
Bare |
OD |
|||||||||
|
|
||||||||||
|
Bay |
6-Solid |
1.143 |
4.115 |
6.401 |
6-7 |
503.485 |
63 |
155 |
217 |
78 |
|
French-conch |
6-7 |
1.143 |
4.674 |
6.960 |
6-7 |
503.485 |
71 |
155 |
226 |
78 |
|
Cerman-conch |
4-Solid |
1.143 |
5.182 |
7.468 |
4-7 |
798.318 |
79 |
247 |
324 |
103 |
|
Arabian |
4-7 |
1.143 |
5.893 |
8.179 |
4-7 |
784.711 |
89 |
247 |
336 |
103 |
|
Belgain |
2-7 |
1.143 |
7.417 |
9.703 |
2-7 |
1270.052 |
115 |
391 |
506 |
136 |
|
Saddle |
1-19 |
1.524 |
8.433 |
11.481 |
2-7 |
1270.052 |
171 |
466 |
637 |
158 |
|
Plow |
1/0-7 |
1.524 |
9.347 |
12.395 |
1/0-7 |
2023.011 |
192 |
624 |
814 |
182 |
|
Sherland |
1/0-19 |
1.524 |
9.474 |
12.522 |
1/0-7 |
2023.011 |
193 |
624 |
817 |
182 |
|
Dapple-grey |
2/0-7 |
1.524 |
10.516 |
13.564 |
2/0-7 |
2444.850 |
217 |
786 |
1005 |
210 |
|
Thoroughbred |
2/0-19 |
1.524 |
10.643 |
13.691 |
2/0-7 |
2444.850 |
220 |
786 |
1007 |
210 |
|
Dobbin |
3/0-7 |
1.524 |
11.786 |
14.834 |
3/0-7 |
3079.876 |
249 |
991 |
1238 |
242 |
|
Trotter |
3/0-19 |
1.524 |
11.938 |
14.986 |
3/0-7 |
3079.876 |
251 |
991 |
1243 |
242 |
|
Pony |
4/0-7 |
1.524 |
13.259 |
16.307 |
4/0-7 |
3882.730 |
286 |
1250 |
1534 |
279 |
|
Walking |
4/0-19 |
1.524 |
13.411 |
16.459 |
4/0-7 |
3882.730 |
289 |
1250 |
1539 |
279 |
|
|
||||||||||
|
Morochuca |
6-Solid |
1.143 |
4.115 |
6.401 |
6-6/1 |
533.722 |
63 |
149 |
229 |
78 |
|
Chola |
6-7 |
1.143 |
4.674 |
6.96 |
6-6/1 |
533.722 |
71 |
149 |
237 |
78 |
|
Morgan |
4-Solid |
1.143 |
5.182 |
7.468 |
4-6/1 |
843.677 |
79 |
238 |
344 |
103 |
|
Hackney |
4-7 |
1.143 |
5.893 |
8.179 |
4-6/1 |
843.677 |
90 |
238 |
356 |
103 |
|
Palomino |
2-7 |
1.143 |
7.417 |
9.703 |
2-6/1 |
1292.732 |
115 |
377 |
557 |
136 |
|
Albino |
1-19 |
1.524 |
8.433 |
11.481 |
1-6/1 |
1610.245 |
171 |
473 |
699 |
158 |
|
Standardbred |
1/0-7 |
1.524 |
9.347 |
12.395 |
1/0-6/1 |
1986.724 |
192 |
598 |
859 |
182 |
|
Costena |
1/0-19 |
1.524 |
9.474 |
12.522 |
1/0-6/1 |
1986.724 |
193 |
598 |
862 |
182 |
|
Chicoteagues |
2/0-7 |
1.524 |
10.516 |
13.564 |
2/0-6/1 |
2404.027 |
217 |
753 |
1060 |
210 |
|
Grullo |
2/0-19 |
1.524 |
10.643 |
13.691 |
2/0-6/1 |
2404.027 |
220 |
753 |
1063 |
210 |
|
mare |
3/0-7 |
1.524 |
11.786 |
14.834 |
3/0-6/1 |
3002.766 |
249 |
951 |
1308 |
242 |
|
Suffolk |
3/0-19 |
1.524 |
11.938 |
14.986 |
3/0-6/1 |
3002.766 |
251 |
951 |
1313 |
242 |
|
Stallion |
4/0-7 |
1.524 |
13.259 |
16.307 |
4/0-6/1 |
3787.474 |
286 |
1198 |
1622 |
279 |
|
Appaloosa |
4/0-19 |
1.524 |
13.411 |
16.459 |
4/0-6/1 |
3787.474 |
289 |
1198 |
1627 |
279 |
|
|
||||||||||
|
Quarter |
6-Solid |
1.143 |
4.115 |
6.401 |
6-7 |
255.371 |
63 |
149 |
211 |
78 |
|
Clydesdale |
4-Solid |
1.143 |
5.182 |
7.468 |
4-7 |
399.613 |
79 |
237 |
315 |
103 |
|
Pinto |
4-7 |
1.143 |
5.893 |
8.179 |
4-7 |
399.613 |
89 |
237 |
326 |
136 |
|
Mustang |
2-7 |
1.143 |
7.417 |
9.703 |
2-7 |
612.347 |
115 |
377 |
491 |
158 |
|
Shire |
1-19 |
1.524 |
8.443 |
11.481 |
1-19 |
743.888 |
171 |
475 |
646 |
158 |
|
Libyan |
1/0-7 |
1.524 |
9.347 |
12.395 |
1/0-7 |
902.644 |
192 |
598 |
790 |
182 |
|
Criollo |
1/0-19 |
1.524 |
9.474 |
12.522 |
1/0-19 |
902.644 |
193 |
598 |
793 |
182 |
|
Orloff |
2/0-7 |
1.524 |
10.516 |
13.564 |
2/0-7 |
1138.511 |
217 |
754 |
973 |
210 |
|
Peroheron |
2/0-19 |
1.524 |
10.643 |
13.691 |
2/0-19 |
1138.511 |
220 |
754 |
976 |
210 |
|
Mongolian |
3/0-7 |
1.524 |
11.786 |
14.834 |
3/0-7 |
1378.914 |
249 |
951 |
1199 |
242 |
|
Hanoverian |
3/0-19 |
1.524 |
11.938 |
14.986 |
3/0-19 |
1378.914 |
251 |
951 |
1204 |
242 |
|
Singlefoot |
4/0-7 |
1.524 |
13.259 |
16.307 |
4/0-7 |
1737.25 |
286 |
1199 |
1485 |
279 |
|
Oldenburg |
4/0-19 |
1.524 |
13.411 |
16.459 |
4/0-19 |
1737.25 |
289 |
1199 |
1490 |
279 |
PISEN Cable is a professional quadruplex cable (Quadruplex service drop cable ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
