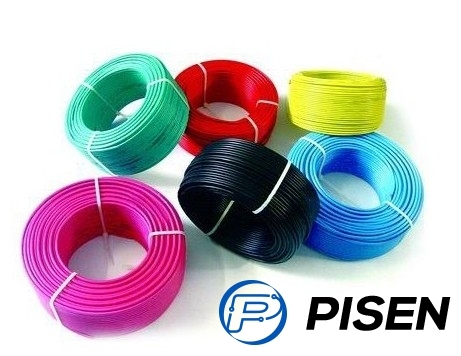

Single Core Solid or Stranded (Copper Conductor PVC Insulated Electric Wire 450/750V) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Application:
The building electric wire can be applied to the copper(aluminum)-core cables in the rated A/C voltage of 450/750V and the below power, lighting, daily electric appliances, apparatus and Telecommunication equipments. Particularly suitable for power circuits indoors or outdoors.
Operation characteristics :
1. U0/U is 450/750V and 300/500V;
2.The allowed long-term working temperature of wire should not exceed 70° C;The cable (wire) shall be installed at temperature not lower than 0° C;
3.The bending radius shall not be less than 4D of the cable overall diameter it is less 25mm; The bending radius shall not be less than 6D of cable overall diameter when it’s more than 25mm.
Construction:

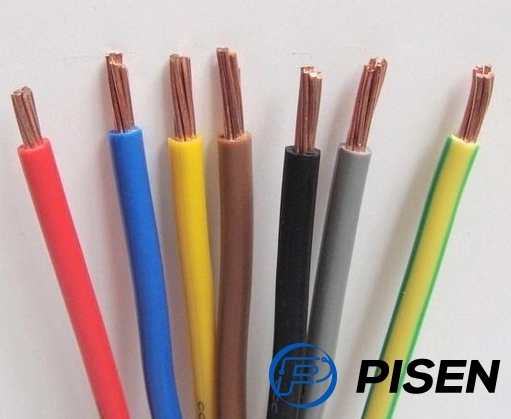

Conductor

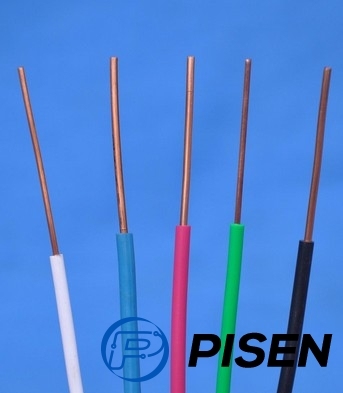

Solid Plain Copper Conductor
Stranded Copper Conductor
Insulation
PVC
(Insulation color: Black, Brown, Yellow, Blue, Red, Green/Yellow, Grey, Orange, White is also available.)
PISEN Cable is a professional Single Core Solid or Stranded (Copper Conductor PVC Insulated Electric Wire 450/750V) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
