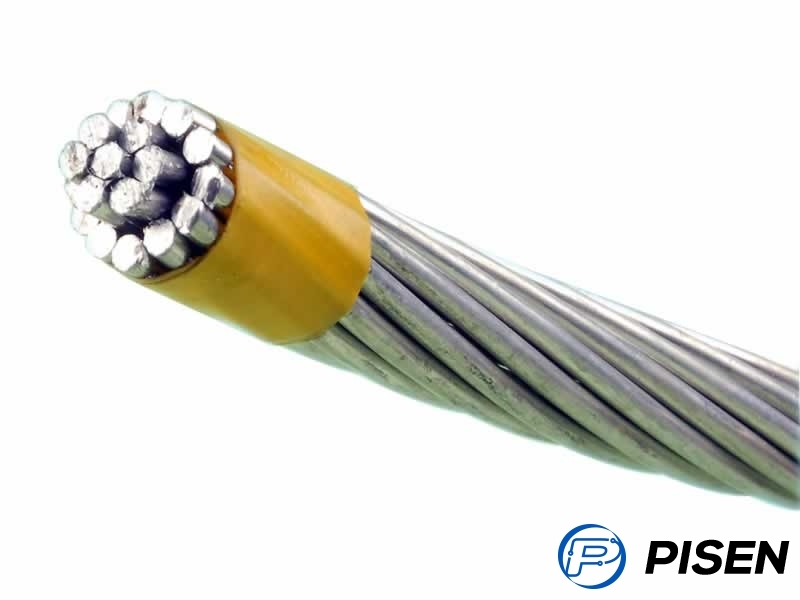

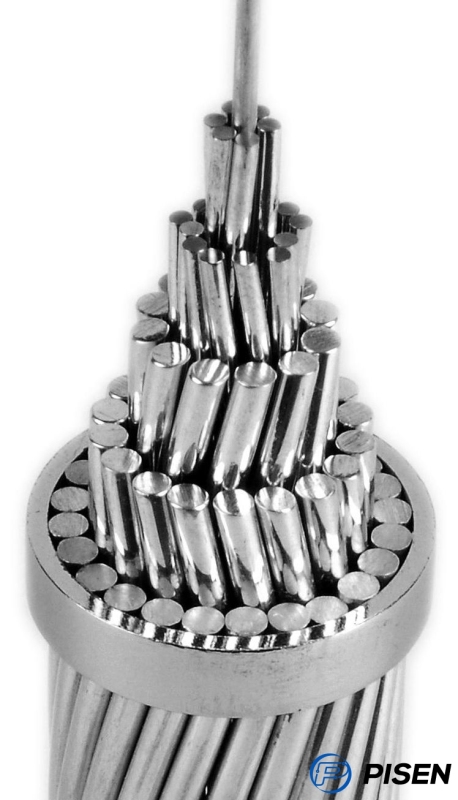

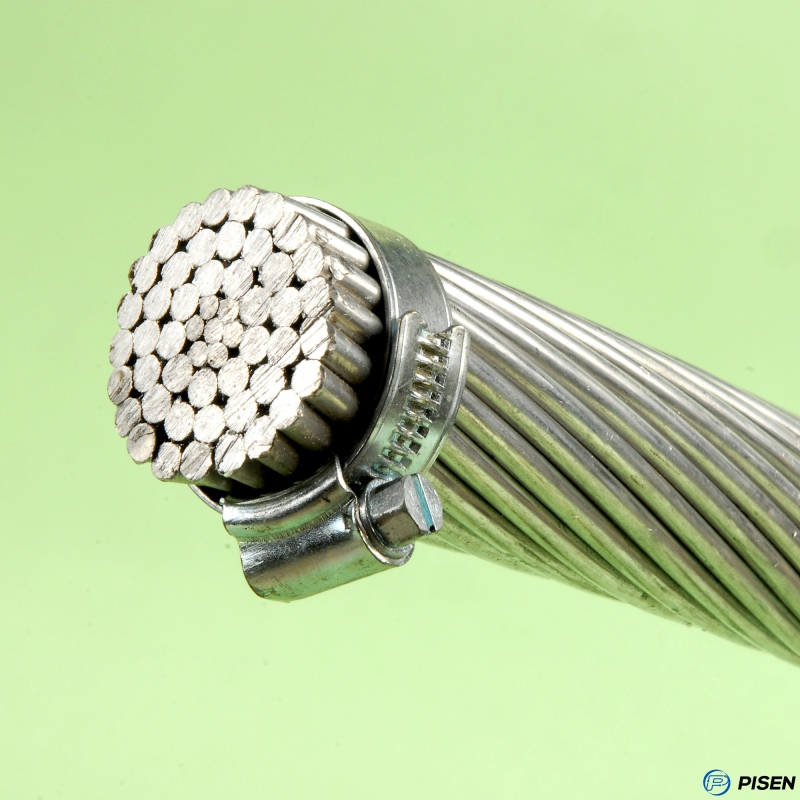

| Nominal Cross Sectional Area |
No/Dia of Wire | Cross Sectional Area | Approximately | DC Resistance at 20 ℃ , max | Calculated Breaking Load, min | Current Carrying Capacity *) | Standard Delivery Length | |||||
| TAL Wire | AS Wire | TAL Wire | AS Wire | Total | Overall Dia. | Net Weight | ||||||
| No./mm | mm2 | mm | kg/km | Ω/km | Kgf | N | A | m | ||||
| 58 | 6/3.5 | 1/3.5 | 57.73 | 9.52 | 67.35 | 10.5 | 234 | 0.5050 | 1,980 | 19,423 | 375 | 5,000 |
| 80 | 6/4.2 | 1/4.2 | 83.13 | 13.85 | 96.98 | 12.6 | 336 | 0.3500 | 2,770 | 27,173 | 480 | 5,000 |
| 80 | 15/2.6 | 4/2.6 | 79.64 | 21.24 | 100.88 | 13.0 | 386 | 0.3680 | 3,810 | 37,376 | 470 | 5,000 |
| 95 | 6/4.5 | 1/4.5 | 95.43 | 15.90 | 111.33 | 13.5 | 386 | 0.3050 | 3,180 | 31,195 | 525 | 5,000 |
| 100 | 15/2.9 | 4/2.9 | 99.08 | 26.42 | 125.50 | 14.5 | 480 | 0.2960 | 4,740 | 46,499 | 545 | 5,000 |
| 120 | 15/3.2 | 4/3.2 | 120.64 | 32.17 | 152.81 | 16.0 | 585 | 0.2430 | 5,550 | 54,445 | 620 | 5,000 |
| 120 | 30/2.3 | 7/2.3 | 124.64 | 29.08 | 153.72 | 16.1 | 574 | 0.2370 | 5,460 | 53,562 | 630 | 5,000 |
| 160 | 30/2.6 | 7/2.6 | 159.28 | 37.17 | 196.45 | 18.2 | 734 | 0.1850 | 6,980 | 68,473 | 745 | 3,000 |
| 200 | 30/2.9 | 7/2.9 | 198.16 | 46.24 | 244.40 | 20.3 | 912 | 0.1490 | 8,680 | 85,150 | 860 | 3,000 |
| 240 | 30/3.2 | 7/3.2 | 241.27 | 56.30 | 297.57 | 22.4 | 1111 | 0.1220 | 10,170 | 99,767 | 980 | 2,000 |
| 330 | 26/4.0 | 7/3.1 | 326.73 | 52.83 | 379.56 | 25.3 | 1320 | 0.0901 | 10,940 | 107,321 | 1,190 | 2,000 |
| 410 | 26/4.5 | 7/3.5 | 413.51 | 67.35 | 480.86 | 28.5 | 1674 | 0.0712 | 13,900 | 136,359 | 1,390 | 1,500 |
| 520 | 54/3.5 | 7/3.5 | 519.54 | 67.35 | 586.89 | 31.5 | 1969 | 0.0567 | 15,590 | 152,937 | 1,610 | 1,500 |
| 610 | 54/3.8 | 7/3.8 | 612.42 | 79.39 | 691.81 | 34.2 | 2321 | 0.0481 | 18,380 | 180,307 | 1,795 | 1,000 |
| 680 | 54/4.0 | 7/4.0 | 678.58 | 87.96 | 766.54 | 36.0 | 2572 | 0.0434 | 19,790 | 194,139 | 1,920 | 1,000 |
| 680 | 45/4.4 | 7/2.9 | 684.24 | 46.24 | 730.48 | 35.1 | 2260 | 0.0431 | 15,590 | 152,937 | 1,910 | 1,000 |
| 810 | 45/4.8 | 7/3.2 | 814.30 | 56.30 | 870.60 | 38.4 | 2700 | 0.0362 | 18,460 | 181,092 | 2,145 | 1,000 |
| 1160 | 84/4.2 | 7/4.2 | 1163.77 | 96.98 | 1,260.75 | 46.2 | 3997 | 0.0254 | 27,870 | 273,404 | 2,700 | 500 |
| 1520 | 84/4.8 | 7/4.8 | 1520.03 | 126.67 | 1,646.70 | 52.8 | 5221 | 0.0195 | 36,410 | 357,182 | 3,185 | 500 |
Note: Continuous operating temperature of conductor = 80 ℃ , Air temperature = 35 ℃ , wind velocity = 0.6 m/sec |
||||||||||||
