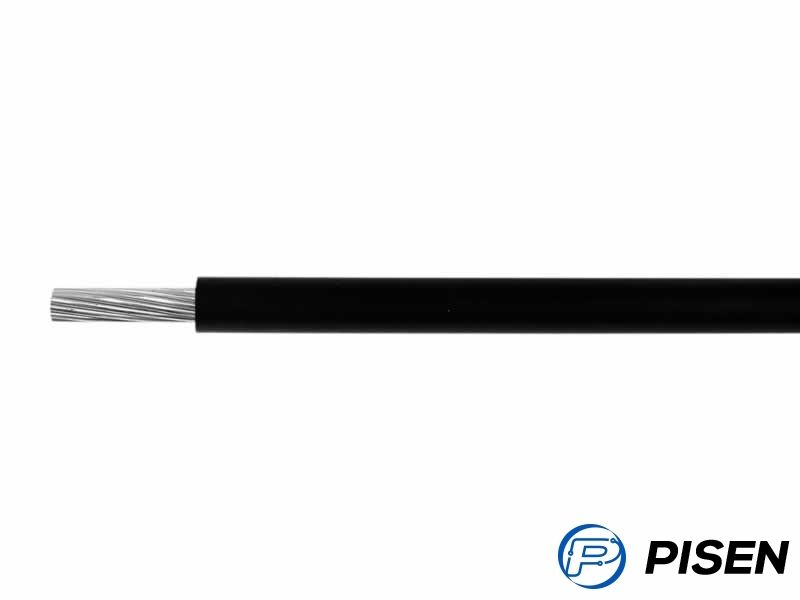

USE-2/RHH/RHW-2 Wire cable (USE-2 RHH RHW-2 Direct Burial Aluminium Conductor 600V) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Applications:
The RHH/RHW-2/USE cable is suitable for commercial and industrial application. It can be installed indoors and outdoors in both dry and wet places, such as cable conduit, under ground pipeline, and some others. In addition, this heat resistant cable supports overhead installation and direct burial installation.
With the rated voltage of 600V, the RHH/RHW-2/USE cable is produced in compliance with NEC standard. Therefore, it can be used for continuous operation, emergency overload conditions, and short circuit conditions, with the maximum temperature of 90℃, 130℃, and 250℃, respectively.
Constructions:
Stranded AA-8000 aluminum alloy conductor
Black cross-linked polyethylene (XLP) insulation sheath with good resistance to abrasion, moisture, heat and sunlight.
Standard:
The RHH/RHW-2/USE cable is strictly produced according to UL Standard 44 (RHH or RHW-2) and UL Standard 854 (USE-2). In addition, the power cable conforms to Federal Specification A-A-59544 and the requirement specified in NEC.
Installation:
For high efficiency, the single conductor cable can be paralleled or multiplexed. Meanwhile, pre-installation in conduit is also available.
Specifications of RHH/RHW-2/USE Cable :
|
Conductor Size (AWG or kcmil) |
Insulation Sheath Thickness (mils) |
Nominal O.D.(mils) |
Allowable Ampacity * (Amps) |
Approximate Net Weight Per 1000ft (lbs) |
||
|
60℃ |
75℃ |
90℃ |
||||
|
8 |
60 |
257 |
30 |
40 |
45 |
36 |
|
6 |
60 |
292 |
40 |
50 |
60 |
49 |
|
4 |
60 |
336 |
55 |
65 |
75 |
65 |
|
2 |
60 |
391 |
75 |
90 |
100 |
94 |
|
1 |
80 |
462 |
85 |
100 |
115 |
126 |
|
1/0 |
80 |
499 |
100 |
120 |
135 |
151 |
|
2/0 |
80 |
539 |
115 |
135 |
150 |
182 |
|
3/0 |
80 |
586 |
130 |
155 |
175 |
221 |
|
4/0 |
80 |
638 |
150 |
180 |
205 |
269 |
|
250 |
95 |
713 |
170 |
205 |
230 |
326 |
|
300 |
95 |
763 |
190 |
230 |
255 |
381 |
|
350 |
95 |
809 |
210 |
250 |
280 |
435 |
|
400 |
95 |
852 |
225 |
270 |
305 |
488 |
|
500 |
95 |
929 |
260 |
310 |
350 |
595 |
|
700 |
110 |
1100 |
310 |
375 |
420 |
829 |
|
750 |
110 |
1131 |
320 |
385 |
435 |
881 |
|
1000 |
110 |
1283 |
375 |
445 |
500 |
1145 |
PISEN Cable is a professional USE-2/RHH/RHW-2 Wire cable (USE-2 RHH RHW-2 Direct Burial Aluminium Conductor 600V ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time !
