Name: Welding Cable,Welding Wire
Brand: HENAN PISEN WIRE & CABLE CO.,LTD
SKU: 27
Availability: InStock
Rating: 5 (1 reviews)

Home > Power Cable

Description

Welding Cable (Welding Wire) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Welding Wire / Welding Cables Construction:

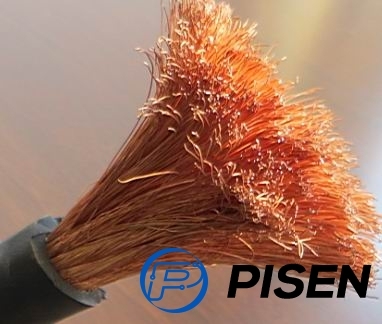

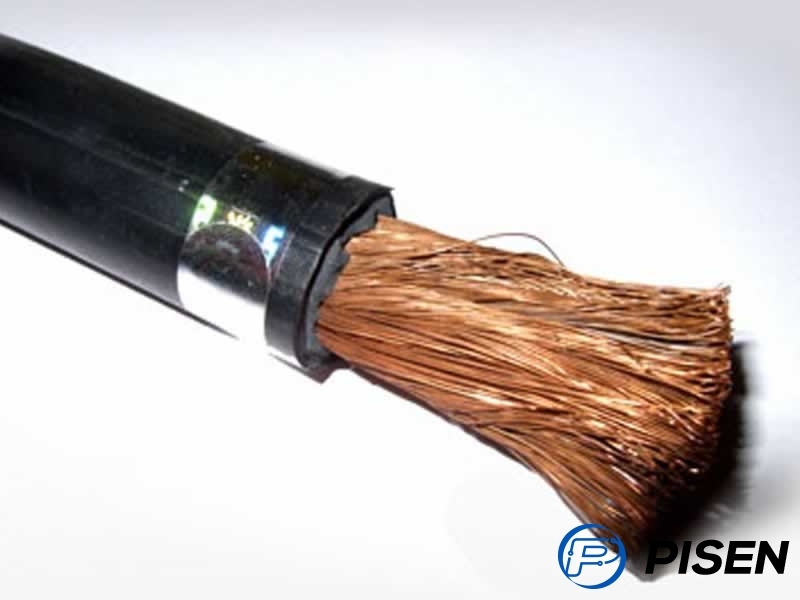

Conductor: Fully annealed stranded bare copper per ASTM B-172.
Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)

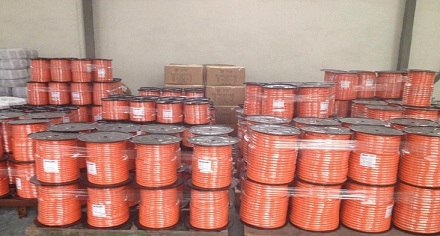

Additional Jacket Colors: Also available in orange, yellow, blue or green

Weld Wire Applications:

1). Secondary voltage resistance welding leads.
2). Power supply applications not exceeding 600 volts A.C.
3). Battery Cable
4). Welding

Weld Wire Features:

1). Weld Wire is resistant to cuts, tears and abrasion in addition to moisture.
2). Welding Wire offers good color retention along with great flexibility.
3). Welding Wire / Welding Cable Options:
4). Zero Halogen EP Jacket
5). UL 600V CPE 90°C
6). CSA Approved Welding Wire
7). Featuring stranded bare copper and available in sizes 6 AWG up to 500 MCM, welding cable is rated to 600V rms max and suitable for us from -50°C to 105°C.

Main Technical Date; Welding Cables to IEC 60245 standard :

Nominal section area(mm2)	No./diameter of stranding(mm)	Nominal sheath thickness (mm)	Overall diameter(mm)		Max. conductor resistance at 20℃(Ω/km)
Nominal section area(mm2)	No./diameter of stranding(mm)	Nominal sheath thickness (mm)	Min.	Max.	Without tinned	With tinned
10	322/0.20	1.8	7.5	9.7	1.91	1.95
16	513/0.20	2.0	9.2	11.5	1.16	1.19
25	798/0.20	2.0	10.5	13.0	0.758	0.780
35	1121/0.20	2.0	11.5	14.5	0.536	0.552
50	1596/0.20	2.2	13.5	17.0	0.379	0.390
70	2214/0.20	2.4	15.0	19.5	0.268	0.276
95	2297/0.20	2.6	17.0	22.0	0.198	0.204
120	1702/0.30	2.8	19.0	24.0	0.161	0.164
150	2135/0.30	3.0	21.0	27.0	0.129	0.132
185	1443/0.40	3.2	22.0	29.0	0.106	0.108
240	1908/0.40	3.8	25.0	35.0	0.0801	0.0817

Welding Cables to ASTM Standard :

Size (AWG)	Nominal stranding		Nominal overall diameter		Approx. net weight (LBS/1000ft)	Max. conductor resistance at 20℃(Ω/km)
Size (AWG)	AWG	mm	inch	mm	Approx. net weight (LBS/1000ft)	Max. conductor resistance at 20℃(Ω/km)
6	259/30	259/0.254	0.430	10.92	152	1.33
4	418/30	418/0.254	0.475	12.07	215	0.84
2	646/30	646/0.254	0.540	13.72	296	0.53
1	836/30	836/0.254	0.580	14.73	360	0.42
1/0	1032/30	1032/0.254	0.615	15.62	424	0.33
2/0	1290/30	1290/0.254	0.655	16.64	513	0.26
3/0	1672/30	1672/0.254	0.720	18.29	644	0.21
4/0	2066/30	2066/0.254	0.780	19.81	824	0.17

PISEN Cable is a professional Welding Cable (Welding Wire ) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material on time!
