Choosing the right overhead conductor is a critical step in designing a reliable and efficient power distribution system. The conductor directly affects electrical performance, mechanical stability, installation costs, and the long-term operation of overhead power lines.

For many utility companies, EPC contractors, and electrical engineers, selecting between different aluminum conductors requires careful consideration. Factors such as current capacity, transmission distance, environmental conditions, and mechanical requirements all influence the final decision.

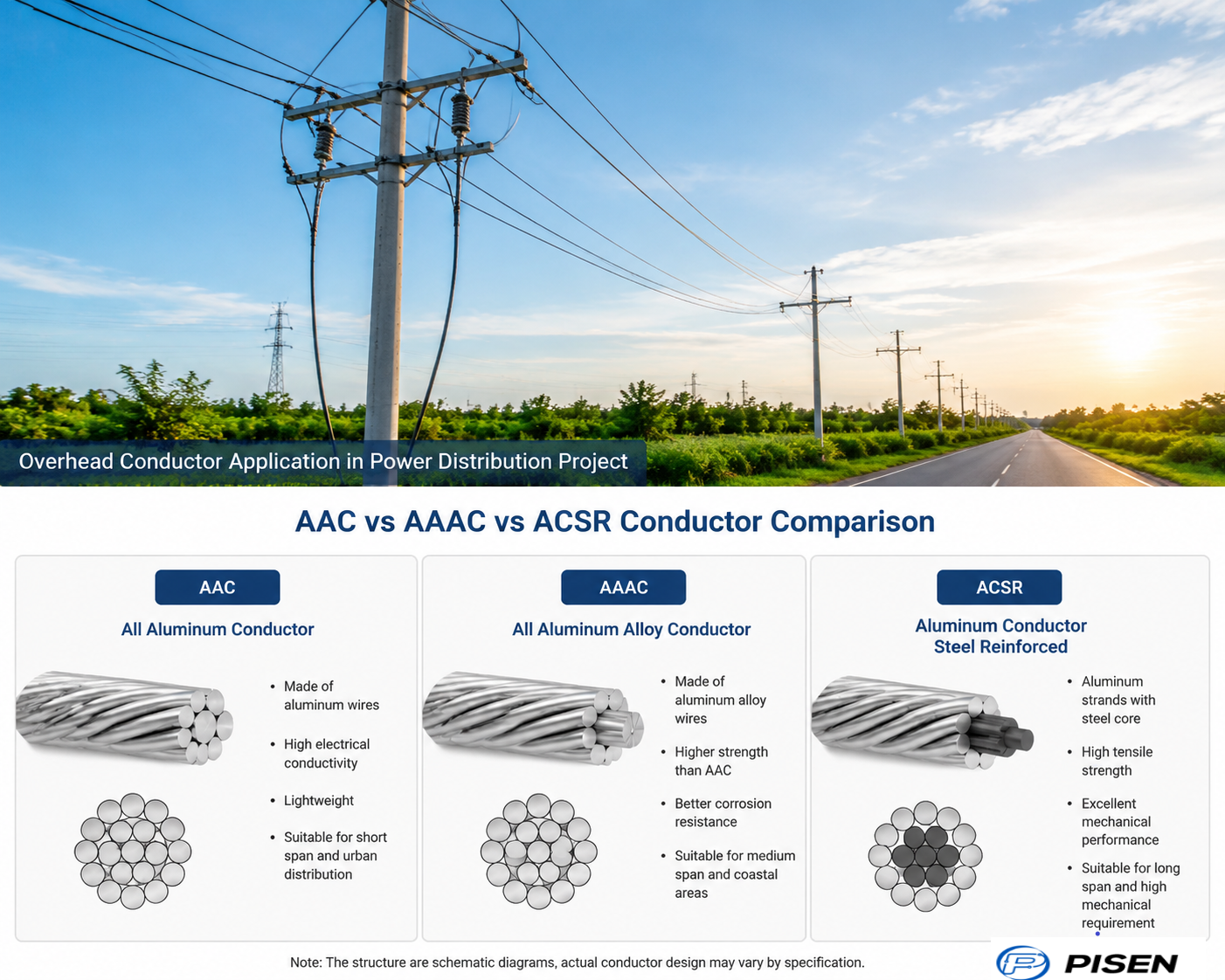

Common conductor options include AAC (All Aluminum Conductor), AAAC (All Aluminum Alloy Conductor), and ACSR (Aluminum Conductor Steel Reinforced). Each type has different advantages and is designed for specific applications.

This guide explains the key factors to consider when selecting an overhead conductor for your power distribution project.

1. Evaluate Your Project Requirements Before Selecting a Conductor

Every power distribution project has different operating conditions. Before choosing a conductor, engineers should first evaluate the overall requirements of the system.

Important factors include:

• Voltage level
• Expected load capacity
• Transmission distance
• Installation environment
• Mechanical requirements
• Future expansion needs

Selecting a conductor based only on price may result in higher operating costs or insufficient performance in the future.

A suitable overhead conductor should provide a balance between electrical efficiency, mechanical reliability, and project cost.

2. Consider Electrical Performance and Current Carrying Capacity

The primary function of a conductor is to transmit electrical power efficiently. Therefore, electrical performance is one of the most important factors during selection.

Current Carrying Capacity

The conductor must be able to handle the expected electrical load without excessive temperature rise.

An unsuitable conductor size may lead to:

• Increased power losses
• Reduced efficiency
• Shorter service life

Electrical Conductivity

Aluminum conductors are widely used in overhead distribution systems because aluminum offers:

• Good electrical conductivity
• Lightweight characteristics
• Cost advantages
• Easy installation

For many distribution projects, aluminum-based conductors provide an effective combination of performance and economy.

3. Consider Transmission Distance and Mechanical Strength

The distance between supporting structures has a significant impact on conductor selection.

Longer spans require conductors with higher mechanical strength to withstand:

• Wind pressure
• Ice loading
• Tensile stress
• Environmental conditions

Different conductor types provide different mechanical performance.

AAC Conductor: Excellent Conductivity for Distribution Networks

AAC (All Aluminum Conductor) is made entirely from aluminum strands.

Main advantages:

• High electrical conductivity
• Lightweight structure
• Good cost efficiency

AAC conductors are commonly used for:

• Urban distribution networks
• Short-span overhead lines
• Applications where electrical conductivity is the priority

AAAC Conductor: Improved Strength and Corrosion Resistance

AAAC (All Aluminum Alloy Conductor) uses aluminum alloy strands to provide better mechanical performance compared with AAC.

Main advantages:

• Higher strength-to-weight ratio
• Better corrosion resistance
• Suitable for challenging environments

AAAC conductors are often selected for:

• Medium-span overhead lines
• Coastal areas
• Distribution projects requiring improved durability

ACSR Conductor: High Mechanical Performance for Long Spans

ACSR (Aluminum Conductor Steel Reinforced) combines aluminum strands with a steel core.

Main advantages:

• High tensile strength
• Excellent mechanical stability
• Suitable for long-distance applications

ACSR conductors are commonly used for:

• Long-span transmission lines
• Areas with higher mechanical requirements
• Projects requiring strong structural performance

For a detailed comparison between AAC, AAAC, and ACSR conductors, you can refer to our previous guide:
AAC vs AAAC vs ACSR Conductor: A Practical Guide for Overhead Power Line Design

4. Analyze Environmental Conditions

The installation environment has a direct impact on conductor performance and service life.

Coastal and High Humidity Areas

Projects near oceans or areas with high humidity may face corrosion challenges.

AAAC conductors are often considered because aluminum alloy materials provide improved corrosion resistance.

High Wind Areas

Strong wind conditions require conductors with reliable mechanical strength.

ACSR conductors are frequently selected for projects where higher tensile strength is required.

Urban Power Distribution

Urban distribution networks usually prioritize:

• Reliable operation
• Cost efficiency
• Easy installation

AAC conductors are commonly used in these applications.

5. Balance Initial Cost and Long-Term Performance

When selecting an overhead conductor, the lowest purchase price is not always the most economical choice.

Engineers should consider the total lifecycle cost, including:

• Installation expenses
• Energy losses
• Maintenance requirements
• Expected service life

A higher-performance conductor may provide better long-term value by reducing maintenance needs and improving operational reliability.

6. Choose a Reliable Overhead Conductor Manufacturer

After determining the appropriate conductor type, selecting a reliable manufacturer is another important step.

A professional conductor supplier should provide:

Stable Manufacturing Capability

A qualified manufacturer should have:

• Advanced production equipment
• Experienced technical teams
• Consistent production quality

Strict Quality Control

Reliable conductors should undergo inspection and testing to ensure:

• Electrical performance
• Mechanical strength
• Product reliability

Customized Solutions

Different projects may require customized options, including:

• Conductor size
• Technical specifications
• Packaging requirements
• Delivery arrangements

PISEN Cable provides AAC, AAAC, and ACSR conductor solutions for global power distribution projects. With professional manufacturing capabilities and strict quality control, we support customers with reliable overhead conductor products based on different application requirements.

Frequently Asked Questions About Overhead Conductor Selection

What factors should be considered when selecting an overhead conductor?

The main factors include current capacity, transmission distance, environmental conditions, mechanical strength, and total project cost.

Which conductor is better, AAC or AAAC?

AAC provides excellent conductivity and cost efficiency, while AAAC offers improved mechanical strength and corrosion resistance. The better choice depends on the project requirements.

When should ACSR conductors be used?

ACSR conductors are suitable for applications requiring higher tensile strength, longer spans, and better mechanical performance.

Selecting the right overhead conductor requires a comprehensive understanding of electrical requirements, mechanical conditions, and environmental factors.

AAC, AAAC, and ACSR conductors each provide unique advantages for different applications. The best choice depends on the specific needs of your power distribution project.

PISEN Cable supplies reliable AAC, AAAC, and ACSR conductor solutions for international power distribution projects. Our team can provide professional support to help customers select suitable conductor products according to their project requirements.
